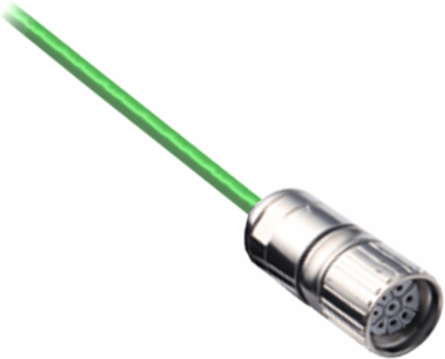

Schneider Electric VW3E1143R100 Power Cable for Axis 1, 10 Meter, M23 Connector, 1.5 mm2
- MPN: VW3E1143R100
- PPN: SCH-VW3E1143R100
CAD
$407.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Lexium 52 & Motors range, an offer of connection accessories for power supply. This power cable is an accessory for Axis 1 STS40/60/80. The length of this cable is 10m. It is furnished with M23 industrial connector for electrical connection. The cable composition is 1.5mm². The connector is made of metal. It weighs 2.602kg. This range is compatible with Lexium 52, Lexium 62 and Lexium STS. The product is compatible with LXM 62 servo drive, LXM 52 servo drive, SH3055.P and SH3070.P/M. Lexium 52 provides an ideal counterbalance to the Lexium 62 multi-axis servo system, making the PacDrive system one of the most flexible motion control solutions. Lexium Stand alone servo drives from 0.4kW and 7kW for PacDrive based automation solutions.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Germany, France, Hungary
Physical Attributes
- Cable Length
- 10 m
Important Information Attributes
- Accessory / Separate Part Destination
- power supply, holding brake, temperature sensor
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 5 kg CO2 eq., 5.083802148428327
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 15 kg CO2 eq., 15.34928288818369
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Traceability
- No
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1409020EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1901
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Cable Cross Section
- 1.5-1.5 mm²
- Material
- metal
- Product Or Component Type
- power cable
- Returnability
- No
- Sustainable Packaging
- No
- Pep Code
- ENVPEP1409020_V3
- Pep Verification Date
- 2025-10-12
- Psr Version
- PSR-0001-ed4-EN-2022 11 16
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Accessory / Separate Part Category
- connection accessories
- Package Weight(Lbs)
- 2.520 kg
- Warranty (In Months)
- 18
Carbon Footprint Of The Distribution Phase [A4]0.353955391524483, 0.4 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.013623653799318052, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2026-01-12
Stocking FlagY
ServiceabilityNo
Weee ScopeOut
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Product Kit IdentifierN
Connector TypeM23
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductPacDrive 3
Software Versionv6.2.5-6
Total Lifecycle Carbon Footprint21 kg CO2 eq.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo transmit energy over a distance of 5 meter during 10 years at a 100% use rateTo transmit energy over a distance of 5 meter during 10 years at a 100% use rate
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Germany, DE
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Germany, DE
Recyclability Potential In %21
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8544429090
Environment Attributes Main
- Product Compatibility
- LXM 62 servo drive, LXM 52 servo drive, SH3055.P..., SH3070.P/M..., SH3100.P/M..., SH31401M..., MH3070.P..., MH3100.P...
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1409020EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1409020_V3
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
China Rohs RegulationX
Carbon Footprint20.800664081935818
Environmental DisclosureENVPEP1409020_V3
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-10-12
Psr VersionPSR-0001-ed4-EN-2022 11 16
General Attributes
- Product Or Component Type
- power cable
Range Of ProductPacDrive 3
ETIM
- ETIM 8
- EC002584
ETIM 9EC002584
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
