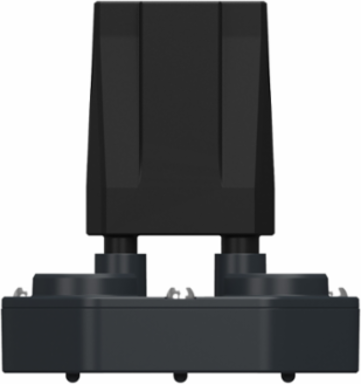

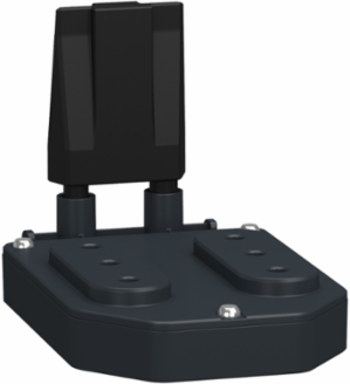

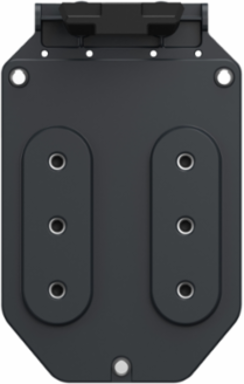

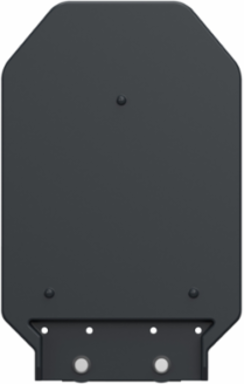

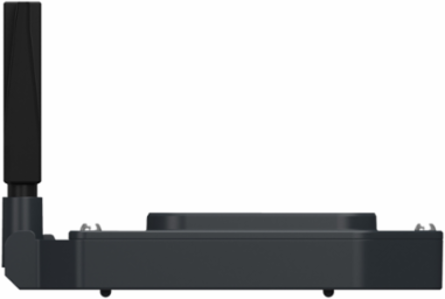

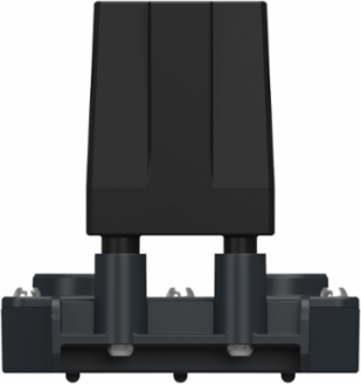

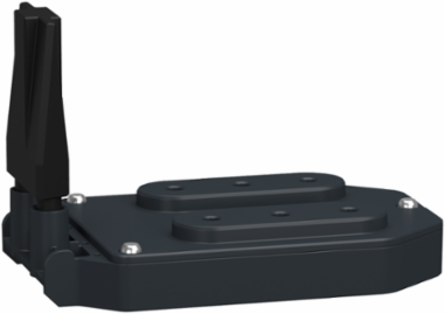

Schneider Electric LXMMCBPA001S100 power interconnect, Lexium MC12, 1 piece
- MPN: LXMMCBPA001S100
- PPN: SCH-LXMMCBPA001S100
CAD
$991.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

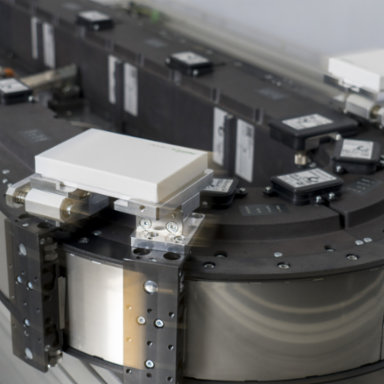

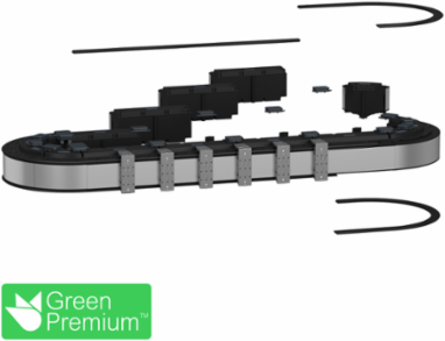

The power interconnect is part of Lexium MC12 multi carrier range, a modular transportation system. This power interconnect supports the transmission of the DC power of a track. This plugable connector is made to interconnect long stator segments. It is equipped with M23 connectors. It uses M3x8 screw IOS14583, with 0.6Nm torque. This modular system is for machine applications and consists of long stator motors, on which multiple carrier units can be moved independently from each other. This offer is certified by CE, UKCA, RCM, TÜV Zertifizierung, China RoHS, and WEEE. To create a transportation system, associate long stator motor segments, Guide rails, carriers, communication/power interconnects and cables. It is sold individually. Power interconnects install at the base of the junction of 2 long straight/curved stator segments. Next generation transport system with unprecedented simplicity in installation and commissioning. Lexium MC12 multi carrier is an innovative transport system for moving, positioning or grouping objects in machines for discrete processes.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Germany
Depth82 mm
Important Information Attributes
- Persona Type Ids
- EU, OM
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0774135211, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0068607042, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- N
- Serviceability
- No
- Weee Scope
- Out
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Tier Id
- 3
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Quantity Per Set
- 1 piece
- Returnability
- Yes
- Sustainable Packaging
- No
- Pep Code
- ENVPEP2110015EN
- Pep Verification Date
- 2021-12-01
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To support the transmission of the DC power in the track with a 100% use rate during 20 years.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Germany
- Energy Model - Use [B6]
- nan
- Length Total
- 119 mm
- Accessory / Separate Part Category
- connection accessories
- Accessory / Separate Part Type
- connector
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536904000
Persona Type NamesEnd User, Original Equipment Manufacturer
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.2 kg CO2 eq., 0.2206478873
Carbon Footprint Of The Manufacturing Phase [A1 To A3]5 kg CO2 eq., 4.932084507
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
TraceabilityNo
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2110015EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2140
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier3
Function OptionAdvanced
Market SegmentationIndustrial
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductLexium MC12 multi carrier
Software VersionEIME v5.8.1
Total Lifecycle Carbon Footprint5 kg CO2 eq.
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]nan
Energy Model - End Of Life [C1-c4]nan
Width Nominal75 mm
Accessory / Separate Part Destinationlongstator motor
Accessory / Separate Part Designationpower interconnect
Package Weight(Lbs)522.000 g
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 5.2370066197
- Environmental Disclosure
- ENVPEP2110015EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2021-12-01
- Type Of Verification For The Pep
- Independent internal review
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2110015EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2110015EN
Pcr VersionPCR-ed3-EN-2015 04 02
General Attributes
- Range Of Product
- Lexium MC12 multi carrier
ETIM
- ETIM 8
- EC002584
ETIM 9EC002584
