Fluke Fluke 1738/B Fluke 1736 and 1738 Three-Phase Power Quality Loggers Fluke 1738/B
- MPN: Fluke 1738/B
- UPC: 095969778855
- PPN: FLU-FLUKE-1738/B
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

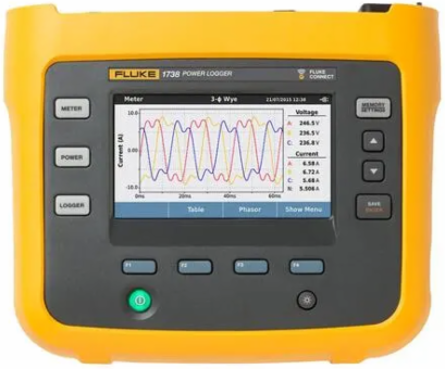

Fluke 1736 and 1738 Three-Phase Power Quality Loggers Fluke 1738/B
Features
- Versatile, three-phase power loggers for conducting energy, load and power quality studies.
- Automatically capture and log voltage, current, power, harmonics and associated power quality values, and capture dips, swells, and inrush currents with event waveform snapshots and high-resolution RMS profiles.
- Convenient instrument powering
- directly from the measured circuit
- Download and analyze every detail of energy consumption and power quality state of health with our automated reporting.
Documentation & Downloads
Specifications
i17xx-flex 1500 12" Flexible Current Probe Specifications
| Measuring range | 1 to 150 A ac/10 to 1500 A ac |
|---|---|
| Intrinsic error at reference condition* | ±0.7% of reading |
| Temperature coefficient over operating temperature range | 0.05% of reading/°C 0.09% of reading/°F |
| Probe cable length | 305 mm (12 in) |
| Minimum bending radius | 38 mm (1.5 in) |
| Weight | 115 g |
| Coupling material | POM + ABS/PC |
| Operating temperature | -20 °C to +70 °C (-4 °F to 158 °F) temperature of conductor under test shall not exceed 80 °C (176 °F) |
| Relative humidity, operating | 15% to 85% non-condensing |
| Warranty | One-year |
| Nondestructive current | 100 kA (50/60 Hz) |
|---|---|
| Accuracy 173x + iFlex | ±(1% of reading + 0.02% of range) |
| Working voltage | 1000 V CAT III, 600 V CAT IV |
| Probe cable diameter | 7.5 mm (0.3 in) |
| Output cable length | 2 m (6.6 ft) |
| Probe cable material | TPR |
| Output cable | TPR/PVC |
| Temperature, non-operating | -40 °C to +80 °C (-40 °F to 176 °F) |
| IP rating | IEC 60529:IP50 |
Environmental Specifications
| Operating temperature | -10 °C to +50 °C (14 °F to 122 °F) |
|---|---|
| Operating humidity | 40 °C to 50 °C (104 °F to 122 °F) max. 45% RH |
| Storage altitude | 12,000m |
| Vibration | MIL-T-28800E, Type 3, Class III, Style B |
| Electromagnetic compatibility | USA (FCC): 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103 |
| Storage temperature | -20 °C to +60 °C (-4 °F to 140 °F), with battery: -20 °C to +50 °C (-4 °F to 122 °F) |
|---|---|
| Operating altitude | 2000 m (up to 4000 m derate to 1000 V CAT II/600 V CAT III/300 V CAT IV) |
| Enclosure | IP50 in accordance with EN60529 |
| Safety | IEC 61010-2-031: CAT IV 600 V / CAT III 1000 V |
| Temperature coefficient | 0.1 x accuracy specification/°C |
General Specifications
| Color LCD display | 4.3-inch active matrix TFT, 480 pixels x 272 pixels, resistive touch panel |
|---|---|
| Dimensions | Instrument with power supply attached: 19.8 cm x 16.7 cm x 9 cm (7.8 in x 6.6 in x 3.5 in) |
| Tamper protection | Kensington lock slot |
| Warranty | Calibration cycle: two-years |
|---|---|
| Weight | Power supply: 400 g (0.9 lb) |
