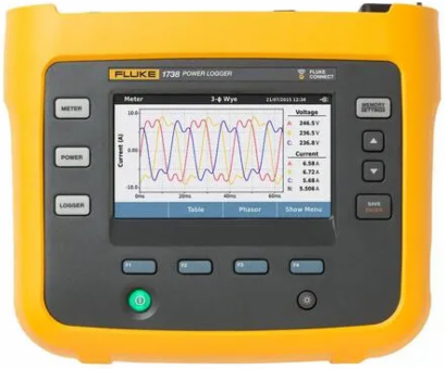

Fluke Fluke 1738/EUS Fluke 1738/EUS Advanced Power Logger, EU and US version (includes current probes)

MPN: Fluke 1738/EUS
UPC: 095969772532
PPN: FLU-FLUKE-1738/EUS

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Fluke 1738/EUS Advanced Power Logger, EU and US version (includes current probes)

Features

Versatile, three-phase power loggers for conducting energy, load and power quality studies.
Automatically capture and log voltage, current, power, harmonics and associated power quality values, and capture dips, swells, and inrush currents with event waveform snapshots and high-resolution RMS profiles.
Convenient instrument powering
directly from the measured circuit
Download and analyze every detail of energy consumption and power quality state of health with our automated reporting.

Documentation & Downloads

Specifications

Environmental Specifications

Operating temperature	-10 °C to +50 °C (14 °F to 122 °F)
Operating humidity	40 °C to 50 °C (104 °F to 122 °F) max. 45% RH
Storage altitude	12,000m
Vibration	MIL-T-28800E, Type 3, Class III, Style B
Electromagnetic compatibility	USA (FCC): 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103

Storage temperature	-20 °C to +60 °C (-4 °F to 140 °F), with battery: -20 °C to +50 °C (-4 °F to 122 °F)
Operating altitude	2000 m (up to 4000 m derate to 1000 V CAT II/600 V CAT III/300 V CAT IV)
Enclosure	IP50 in accordance with EN60529
Safety	IEC 61010-2-031: CAT IV 600 V / CAT III 1000 V
Temperature coefficient	0.1 x accuracy specification/°C

i17xx-flex 1500 12" Flexible Current Probe Specifications

Measuring range	1 to 150 A ac/10 to 1500 A ac
Intrinsic error at reference condition*	±0.7% of reading
Temperature coefficient over operating temperature range	0.05% of reading/°C 0.09% of reading/°F
Probe cable length	305 mm (12 in)
Minimum bending radius	38 mm (1.5 in)
Weight	115 g
Coupling material	POM + ABS/PC
Operating temperature	-20 °C to +70 °C (-4 °F to 158 °F) temperature of conductor under test shall not exceed 80 °C (176 °F)
Relative humidity, operating	15% to 85% non-condensing
Warranty	One-year

Nondestructive current	100 kA (50/60 Hz)
Accuracy 173x + iFlex	±(1% of reading + 0.02% of range)
Working voltage	1000 V CAT III, 600 V CAT IV
Probe cable diameter	7.5 mm (0.3 in)
Output cable length	2 m (6.6 ft)
Probe cable material	TPR
Output cable	TPR/PVC
Temperature, non-operating	-40 °C to +80 °C (-40 °F to 176 °F)
IP rating	IEC 60529:IP50

General Specifications

Color LCD display	4.3-inch active matrix TFT, 480 pixels x 272 pixels, resistive touch panel
Dimensions	Instrument with power supply attached: 19.8 cm x 16.7 cm x 9 cm (7.8 in x 6.6 in x 3.5 in)
Tamper protection	Kensington lock slot
