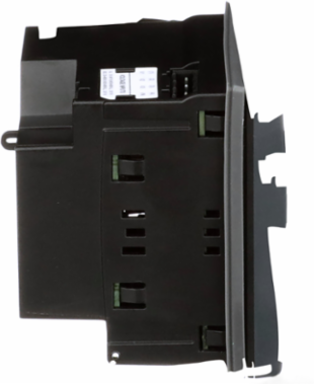

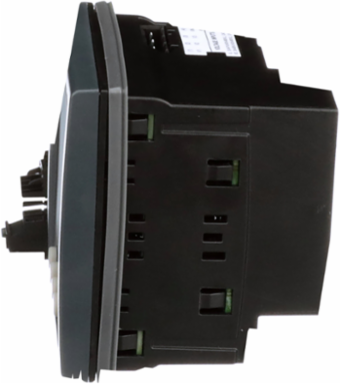

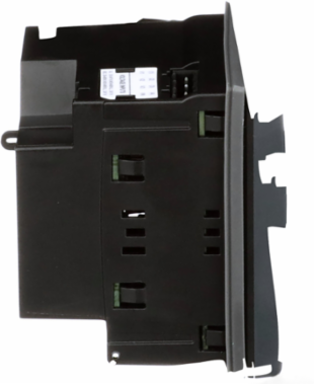

Schneider Electric METSEPM5110 Power Meter PM5110, 96mm x 96mm, Modbus, Up to 15th Harmonic
- MPN: METSEPM5110
- PPN: SCH-METSEPM5110
CAD
$854.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

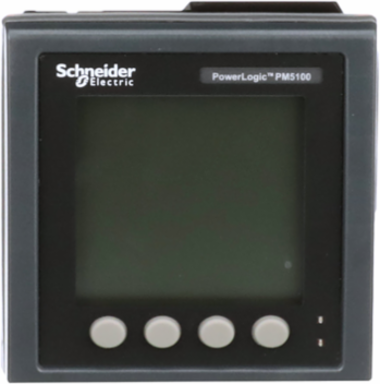

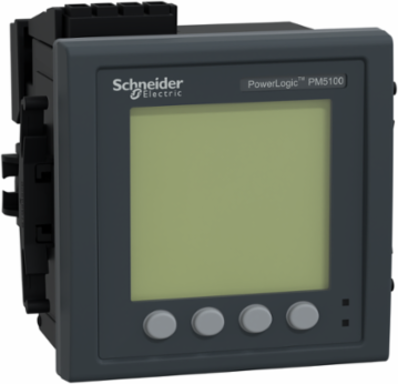

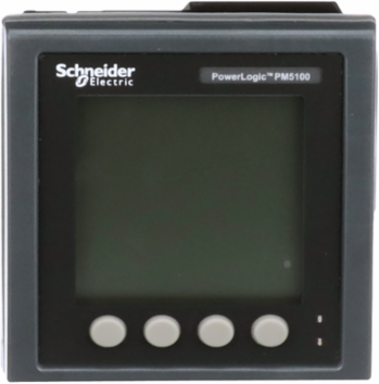

This device is a flush-mount energy meter with a 96mm by 96mm backlit LCD display. The meter provides Class 0.5S accuracy per IEC 62053-22 standard and 64 samples per cycle. The meter will measure Energy, Active and Reactive Power, Voltage, Current, Frequency, Power Factor and up to 15th Harmonic. The meter will function in a 50Hz or 60Hz network and accepts supply voltage ranging from 100 to 415 VAC and 125 to 250 VDC. Line rated current for this meter is 1A or 5A input and will support Single Phase and Neutral, Three Phase, or Three Phase and Neutral configurations. The range of measurement voltage between Phases is 35 to 690 VAC at 47 to 63 Hz. Measurement range between Phase and Neutral is 20 to 400VAC at 47 to 63 Hz. Communication protocol is Modbus RTU and ASCII 2 wires with RS485 port support. The meter also has one digital pulse output and 33 configurable alarms. Product dimensions are as follows: width 3.78 inches (96 millimetres), depth 2.83 inches (72 millimetres), height 3.78 inches (96 millimetres) and product weight 13.4 onces (380 g).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- India, United States
Depth72 mm
Communications & Management Attributes
- Communication Port Protocol
- Modbus RTU and ASCII 9.6, 19.2 and 38.4 kbauds even/odd or none - 2 wires 2500 V, JBUS
Communication Port SupportRS485
Complementary Attributes
- Line Rated Current
- 1 A, 5 A
Maximum Power Consumption In Va11 VA 415 V
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- RESIDENTIAL, COMMERCIAL, INDUSTRIAL
- Data Recording
- time stamping, min/max of instantaneous values
- Market Segment
- buildings medium building cost management: billing: sub feederbuildings large building cost management: billing: sub feederbuildings multi-site cost management: billing: sub feederdata center cost management: billing: sub feederhealthcare cost management: billing: sub feederindustry cost management: billing: sub feederbuildings small building cost management: cost allocation: sub feeder, buildings medium building cost management: cost allocation: main incomer, buildings medium building cost management: cost allocation: sub feeder, buildings large building cost management: cost allocation: main incomer, buildings large building cost management: cost allocation: sub feeder, buildings multi-site cost management: cost allocation: main incomer, buildings multi-site cost management: cost allocation: sub feederdata center cost management: cost allocation: main incomerdata center cost management: cost allocation: sub feederhealthcare cost management: cost allocation: main incomerhealthcare cost management: cost allocation: sub feederindustry cost management: cost allocation: main incomerindustry cost management: cost allocation: sub feederbuildings small building network management: sub feederbuildings medium building network management: main incomerbuildings medium building network management: sub feederbuildings large building network management: sub feederbuildings multi-site network management: sub feeder, data center network management: sub feeder, healthcare network management: sub feeder, industry network management: sub feederbuildings small building cost management: billing: main incomer, buildings small building cost management: billing: sub feeder, buildings medium building cost management: billing: main incomer, buildings large building cost management: billing: main incomer, buildings multi-site cost management: billing: main incomer, data center cost management: billing: main incomer, healthcare cost management: billing: main incomer, industry cost management: billing: main incomer, buildings small building cost management: cost allocation: main incomer, buildings small building network management: main incomer
- Network Frequency
- 50 Hz, 60 Hz
- Type Of Measurement
- current, voltage, frequency, power factor, energy, active and reactive power
- Ride-through Time
- 80 ms 120 V AC typical100 ms 230 V AC typical, 100 ms 415 V AC typical, 50 ms 125 V DC typical
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 1.0182764848915156, 1 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 14 kg CO2 eq., 13.690464535148205
- Other Technical Guide
- https://download.schneider-electric.com/files?p_Doc_Ref=&p_File_name=.pdf, https://download.schneider-electric.com/files?p_Doc_Ref=&p_File_name=.pdf, PLSED310197EN_Web, PLSED310198EN_Web
- Local Publishable Date
- 2026-01-09
- Stocking Flag
- Y
- Device Type
- Relay, Control & Measurement - measuring, monitoring device
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Application
- power monitoring
- Display Resolution
- 128 x 128 pixels
- Energy Efficiency Optimized
- False
- Measurement Current
- 50-8500 mA
- Mounting Mode
- flush-mounted
- Power Quality Analysis
- up to the 15th harmonic
- Product Name
- PowerLogic PM5000
- Range
- PowerLogic
- Sampling Rate
- 64 samples/cycle
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- To measure and monitor electrical parameters over a 10-year period, the device consumes 3.25 watts in active mode (39.50% time) and 2.6 watts in standby mode (60% time), resulting in a total energy consumption of 249.11 kWh. It operates within a supply voltage range of 90-450V AC and 100-300V DC, with a network frequency of 50Hz or 60Hz. The device can measure current (5-8500mA), voltage (35-760V AC, 20-400V DC), and frequency (45-65Hz), ensuring accurate and reliable monitoring in accordance with relevant standards.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 250.2513
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 96 mm
- Certificate Agency
- CE conforming to IEC 61010-1cULus conforming to UL 61010-1
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 9028300000
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationResidential, Commercial, Industrial
Electromagnetic Compatibilityvoltage dips and interruptions immunity test conforming to IEC 61000-4-11voltage dips and interruptions immunity test class A conforming to IEC 61000-4-11limits for harmonic current emissions class A conforming to IEC 61000-3-2, electrostatic discharge level 4 conforming to IEC 61000-4-2, conducted RF disturbances level 3 conforming to IEC 61000-4-6magnetic field at power frequency level 4 conforming to IEC 61000-4-8conducted and radiated emissions - test level: 150 kHz...80 MHz class B conforming to EN 55022, immunity to conducted disturbances - test level: 150 kHz...80 MHz conforming to IEC 61000-4-6electrical fast transient/burst immunity test conforming to IEC 61000-4-4radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3surge immunity test class B conforming to IEC 61000-4-5
Measurement Accuracyactive energy +/- 0.5 %reactive energy +/- 2 %, active power +/- 0.5 %, apparent power +/- 0.5 %frequency +/- 0.05 %power factor +/- 0.5, current +/- 0.5 %, voltage +/- 0.5 %, apparent energy +/- 0.5 %, reactive power +/- 2 %
Number Of Poles1P + N, + N, 3P

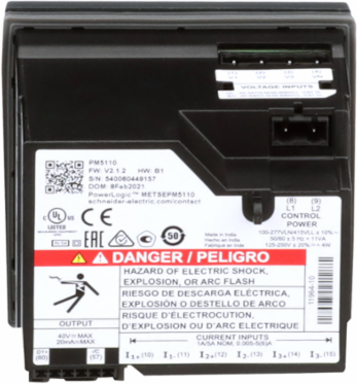

Connections - Terminalsvoltage circuit screw terminal block4control circuit screw terminal block2current transformer screw terminal block6, input/output circuit screw terminal block6, RS485 link screw terminal block4
Carbon Footprint Of The Distribution Phase [A4]0.06523067065820948, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.027333678458057422
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]167 kg CO2 eq., 167.0655433140378
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
ServiceabilityYes
Field Service DivisionDPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1305025_V3
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2031
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Compatibility CodePM5110
Device Short NamePM5110
Display Typemonochrome graphic LCD
Frequency Measurement Range45-65 Hz
Measurement Voltage35-760 V AC 45...65 Hz between phases20-440 V AC 45...65 Hz between phase and neutral
Mounting Supportframework
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typepower meter
ReturnabilityYes
Software Versionv6.2.4
Total Lifecycle Carbon Footprint182 kg CO2 eq.
Pep CodeENVPEP1305025EN
Pep Verification Date2025-09-24
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; India, IN
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Europe, EU-27
Recyclability Potential In %4
Width Nominal96 mm
[Us] Rated Supply Voltage90...450 V AC 45...65 Hz100...300 V DC
Package Weight(Lbs)478.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C meter, -25-70 °C meter, -20-70 °C display, -20-70 °C display, -25--20 °C with reduced performance) display, -25--20 °C with reduced performance) display, -25--20 °C with reduced performance) display-25-70 °C meter, -25-70 °C meter, -20-70 °C display, -20-70 °C display, -25--20 °C with reduced performance) display
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 181.86684868319378
- Environmental Disclosure
- ENVPEP1305025EN
- Ip Degree Of Protection
- IP54 display: conforming to IEC 60529IP30 rear: conforming to IEC 60529
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1305025EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI1305025_V3
Eu Rohs DirectiveCompliant By Exemption
Operating Altitude6561.68 ft (2000 m) CAT III
Packaging Without Single Use PlasticNo
Relative Humidity5-95 % 50-50 °C non-condensing
Pep Verification Date2025-09-24
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- power meter
ETIM
- ETIM 8
- EC002301
ETIM 9EC002301
Output Attributes
- Number Of Outputs
- 1 digital
Input Attributes
- Analogue Input Type
- voltage (impedance 5 MOhm)current (impedance <= 0.3 mOhm)
Number Of Inputs0
