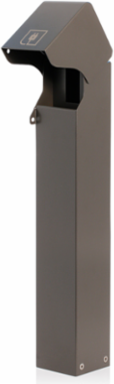

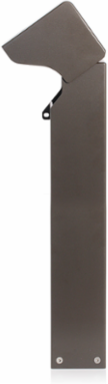

Leviton 1PF24-Z Power Pedestal, Flush Hinge, Surface Mount
- MPN: 1PF24-Z
- PPN: LEV-1PF24-Z
CAD
$2298.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
1-Gang 24” Stainless Steel Power Pedestal, Surface Mount, NEMA 3R, Lockable Flush Hinge Top, Self-Closing Lid, Bronze, Stainless Steel
Features
- SAFE – bring power to previously unreachable locations in a weatherproof, NEMA 3R rated enclosure
- CONVENIENT – easy to mount and install with a variety of device configurations
- VERSATILE – ideal for a variety of applications including campgrounds, public parks, airports, campuses, commercial buildings, and more
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
RoHS CompliantFalse
Material Specifications
- Construction
- Welded pedestal body, base and weatherproof cover
- Mounting Hardware
- Anchors Included
GroundingStainless Steel (Pre-installed Lug)
Pedestal Material304 Stainless Steel (14 gauge body and cover)
Mechanical Specifications
- Conduit Feeds
- Accommodates two 1-1/2" conduit raceways
- Maximum Dimensions
- 24.0"H x 4.27"W x 4.89"D
Height24"
Mounting Plate1-Gang Decora
Product Features
- Application
- Commercial|RV/Campsites
- Color
- Bronze
- Receptacle Compatibility
- Decora Style
BaseFlush with Bracket
Hinge TypeFlush
TopLockable Hinged Flush Mount Top
Warranty
- Warranty
- 1-Year Limited
Electrical Specifications
- Max. Amperage
- 20A Max
Standards & Certifications
- Certification/Listing
- cULus
