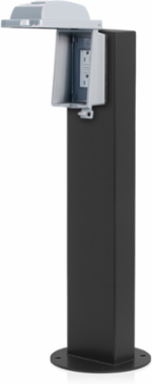

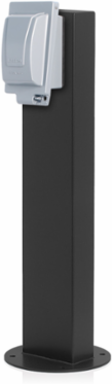

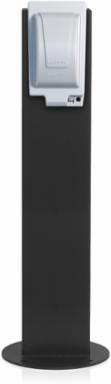

Leviton 1PS24-3E Power Pedestal Kit, No Hinge, Surface Mount
- MPN: 1PS24-3E
- PPN: LEV-1PS24-3E
CAD
$1737.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
1-Gang 24” Stainless Steel Power Pedestal Kit, Surface Mount, NEMA 3R, Black, Kit Includes 20 Amp Weather-Resistant and Tamper-Resistant GFCI (G5362-WTW), Weather Resistant In-Use Cover (IUM1V-GY)
Features
- SAFE – bring power to previously unreachable locations in a weatherproof, NEMA 3R rated enclosure
- CONVENIENT – easy to mount and install with a variety of device configurations
- VERSATILE – ideal for a variety of applications including campgrounds, public parks, airports, campuses, commercial buildings, and more
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Please Contact Customer Service
RoHS CompliantFalse
Standards and Certifications
- Certification/Listing
- cULus, NOM
Material Specifications
- Construction
- Welded pedestal body and base
- Mounting Hardware
- Anchors Included
GroundingStainless Steel (Pre-installed Lug)
Pedestal Material304 Stainless Steel (14 gauge body, 7 gauge base)
Mechanical Specifications
- Conduit Feeds
- Accommodates two 1-1/2" conduit raceways
- Maximum Dimensions
- 24.0"H x 8.0"W x 8.0"D
Height24"
Product Features
- Application
- Commercial|RV/Campsites
- Color
- Black
- Kitted Options
- Comes with Leviton Receptacles
- Top
- 1-Gang Vertical Opening (Fits single device and electrical cover)
BasePedestal
Hinge TypeNo Hinge
Receptacle CompatibilityMounting holes for weather-resistant cover (Receptacle fit is cover dependent)
Warranty
- Warranty
- 1-Year Limited
Electrical Specifications
- Max. Amperage
- 60A Max
Voltage125 VAC
