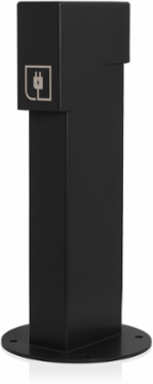

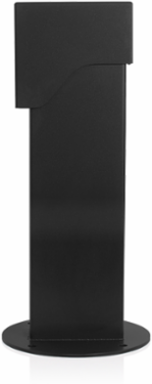

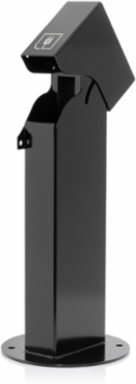

Leviton 1PH18-E Power Pedestal, Standard Hinge, Surface Mount
- MPN: 1PH18-E
- PPN: LEV-1PH18-E
CAD
$2011.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
1-Gang 18” Stainless Steel Power Pedestal, Surface Mount, NEMA 3R, Lockable Hinged Top, Self-Closing Lid, Black, Stainless Steel
Features
- SAFE – bring power to previously unreachable locations in a weatherproof, NEMA 3R rated enclosure
- CONVENIENT – easy to mount and install with a variety of device configurations
- VERSATILE – ideal for a variety of applications including campgrounds, public parks, airports, campuses, commercial buildings, and more
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
RoHS CompliantFalse
Material Specifications
- Construction
- Welded pedestal body, base and weatherproof cover
- Mounting Hardware
- Anchors Included
GroundingStainless Steel (Pre-installed Lug)
Pedestal Material304 Stainless Steel (14 gauge body and cover, 7 gauge base)
Mechanical Specifications
- Conduit Feeds
- Accommodates two 1-1/2" conduit raceways
- Maximum Dimensions
- 18.0"H x 8.5"W x 8.5"D
Height18"
Mounting Plate1-Gang Decora
Product Features
- Application
- Commercial|RV/Campsites
- Color
- Black
- Receptacle Compatibility
- Decora Style
BasePedestal
Hinge TypeStandard
TopLockable Hinged Top
Warranty
- Warranty
- 1-Year Limited
Electrical Specifications
- Max. Amperage
- 20A Max
Standards & Certifications
- Certification/Listing
- cULus
