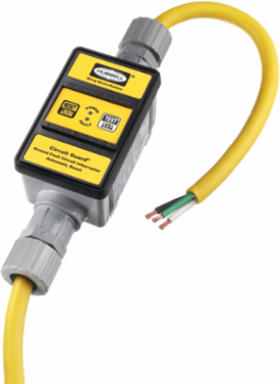

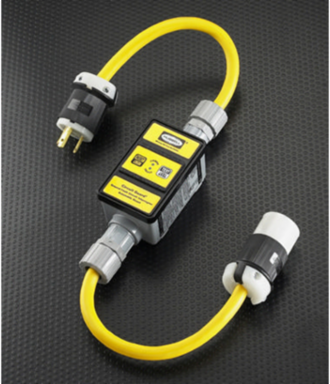

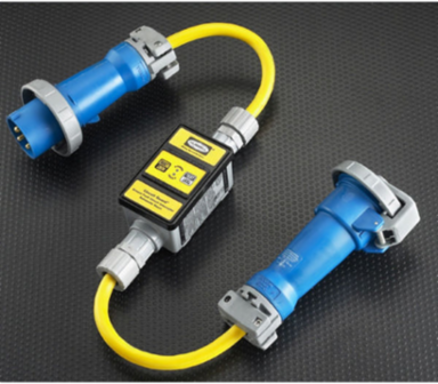

Hubbell Wiring Device-Kellems GFP5315 GFCI Portable Power Outlet, 30A 3-Phase 250V AC, 6' Cord, Yellow
- MPN: GFP5315
- UPC: 783585521312
- PPN: HBL-GFP5315
- UNSPSC: 26121536
CAD
$856.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Power Protection Products, GFCI High Amperage Portables, Industrial/Commercial, Auto Set, 30A 3-Phase 250V AC, 6' Cord Length, 4-6 mA Trip L evel, Yellow.
Features
- Electromagnetic Latching Mechanism
- Trips if ground and neutral touch at load side
- Red blinking light plus optional audible alarm
- Open neutral protection Trips upon loss of neutral
- Auto Set
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 9.100 in
- Performance
- Electrical - Dielectric Withstand - 1500 VRMS across contact, 4000 VRMS between conductors & enclosure;Electrical - Operating Voltage Range - 85% to 110%;Electrical - Rated Voltage - 120V AC, 240V AC, 120/240V AC, 3Ø 250V AC, 3Ø 120/208V AC;Electrical - Surge Withstand - 6000V impulse, 0.5 ms rise time 100kHz ringing frequency;Environmental - Construction - Industrial grade design;Environmental - Housing Rating - UL Type 4X;Environmental - Leakage Current - At 93% Humidity leakage current is zero;Environmental - Operating Temperature - -35°C to 66°C, -30°F to 150°F.;Environmental - Type - Meets UL943 Class A GFCI
- Application
- Line Cord Only No Devices
- Conductor Size
- #10 AWG
- Outside Diameter
- 0.335
- Standard
- cCSA
- Temperature Rating
- -35 Degrees C to 66 Degrees C (-30 Degrees F to 150 Degrees F)
- Voltage Rating
- 3 Phase 250 VAC
- Voltage Rating Description
- 3 Phase 250 VAC
- General Literature Asset 1 Display Text
- Pulp & Paper Solutions
- Conductor Type
- Copper
- Number Of Conductors
- 4
- Class Code
- A40
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A40A410
- Current Rating
- 30 A
- Material - Jacket
- PVC
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 24.3 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5 EA
- Lowest Level UOM
- Each
Current / Amperage Rating30 A
Industry Standard(s)cCSA
Amperage Rating30 A
ColorYellow
Number of Conductors4
Special FeaturesAuto Set
StrandsMulti
TypePortable, Straight Blade
Weight4.5 lb.
Engineering Drawing 1 Display TextGFP5315 AutoCAD Drawing
General Literature Asset 2 Display TextPULP & PAPER SOLUTIONS
ConnectivityPlug-In
StyleAutomatic Set
Description - InvoicePORT GFCI, 30A 3PH 250V, AUTO, 6'
Harmonization Code8536308000
MSDS FlagNo
ConstructionFabricated
Material - InsulationElastomer
SeriesExtra Heavy Duty
BOX SIZE10.000x20.900x20.200 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack783585521312
Each - Pack DescriptionEach
NAICS Code335931A107
Certifications
- EU RoHS Indicator
- No
