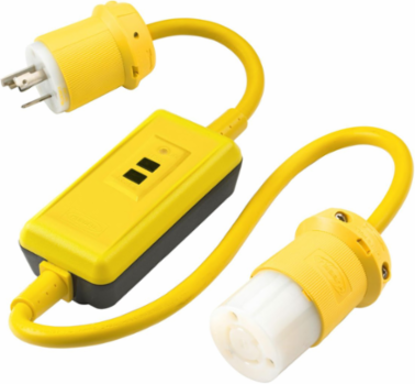

Hubbell Wiring Device-Kellems GFPST3C20MTL GFCI Linecord 20A 120V AC, 3' Cord Length, Yellow
- MPN: GFPST3C20MTL
- UPC: 783585703442
- PPN: HBL-GFPST3C20MTL
- UNSPSC: 39121406
CAD
$407.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Power Protection Products, GFCI Linecord, Commercial, Manual Set, 20A 120V AC, L5-20R, 3' Cord Length, 4-6 mA Trip Level, Yellow
Features
- Unit must be reset by pushing the reset button upon plug in and after loss of primary power
- After a ground fault condition, unit must be reset by pushing the reset button
- Ideal for applications where operator injury might occur if equipment were to restart after a power failure
- Manual Set
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Width
- 4.200 in
- Amperage Rating
- 15 A
- Color
- Yellow
- Standard
- UL Listed
- Type
- Line Cord
- Voltage Rating Description
- 120 VAC
- General Literature Asset 1 Display Text
- Pulp & Paper Solutions
- Conductor Size
- #14 AWG
- Connectivity
- Plug-In
- Outside Diameter
- 0.245
- Style
- Manual Set
- Description - Invoice
- LOCKING GFCI CORD, 20A 120V, 3' MAN
- Harmonization Code
- 8536308000
- MSDS Flag
- No
- Construction
- Fabricated
- Material - Insulation
- Elastomer
- Series
- Extra Heavy Duty
- BOX SIZE
- 9.100x15.200x12.800 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585703442
- Each - Pack Description
- Each
- NAICS Code
- 335931A107
Current / Amperage Rating20 A
Industry Standard(s)UL Listed
ApplicationLine Cord with Male/Female Ends
Special FeaturesManual Set
Temperature Rating-35 Degrees C to 66 Degrees C (-30 Degrees F to 150 Degrees F)
Voltage Rating120 VAC
Weight1.6 lb.
General Literature Asset 2 Display TextPULP & PAPER SOLUTIONS
Conductor TypeCopper
Number Of Conductors3
StrandsMulti
Class CodeA40
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA40A410
Current Rating15 A
Material - JacketPVC
Base Unit of MeasureEA
Carton - Gross Weight per Pack17 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Lowest Level UOMEach
