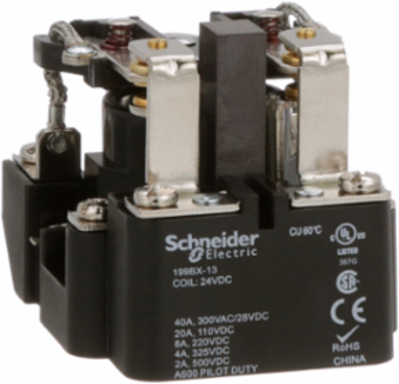

Schneider Electric 199BX-13 Power relay, SE Relays, DPDT, 40A, 24 VDC, magnetic blowout, open type
- MPN: 199BX-13
- PPN: SCH-199BX-13
CAD
$124.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The SE Relays 199 series, open type, heavy duty power relay offers high-capacity switching with high dielectric strength. High-power contacts rated of 40A resistive and 2hp at 120VAC to 600 VAC, input coil voltage 24VDC with DPDT silver alloy contact configuration. Riveted construction helps to increase the mechanical life of the relay.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
Physical Attributes
- Wire Stripping Length
- 8 mm
Complementary Attributes
- Maximum Horse Power Rating
- 2 hp 120...600 V AC 50/60 Hz
- Minimum Switching Current
- 1000 mA 5 V AC/DC
Maximum Switching Voltage600 V DC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Dielectric Strength
- 2200 V AC between coil and contact, 2200 V AC between poles1500 V AC between open contacts
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1918
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 4
- Function Option
- Standard
- Associated Fuse Rating
- 50 A gG at 690 V coordination type 2 for power circuit
- Contacts Type And Composition
- 2 C/O
- Electrical Durability
- 100000 cycles resistive DC load
- Power Consumption In W
- 4-4 W DC
- Product Or Component Type
- power relay
- Sustainable Packaging
- No
- Tightening Torque
- 1.2-1.7 N.m
- Pep Code
- ENVPEP2506027EN
- [Ue] Rated Operational Voltage
- 6...600 V AC 50-60 Hz6...250 V DC
- Drop-out Voltage Threshold
- >= 0.1 Uc>= 0.1 Uc
- Contact Blow-out Type
- magnetic
- Package Weight(Lbs)
- 285.766 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Certificate AgencyUL Listed, CSA, CE
Local Publishable Date2026-03-26
Stocking FlagY
Weee ScopeOut
Scope PerimeterOutside of Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id4
Function Option IdSTANDARD
Product Kit IdentifierN
Average Impedance4 mOhm
Cover Typeopen cover
Power Consumption In Va10-10 VA AC
Product AvailabilityStock - Normally stocked in distribution facility
ReturnabilityYes
Switch FunctionDPDT
Voltage Range0.85...1.1 Un AC/DC
[Ie] Rated Operational Current40 A at 300 V AC (on resistive load) conforming to UL40 A at 28 V DC (on resistive load) conforming to UL20 A at 110 V DC (on resistive load) conforming to UL8 A at 220 V DC (on resistive load) conforming to UL4 A at 325 V DC (on resistive load) conforming to UL2 A at 500 V DC (on resistive load) conforming to UL
Connections - Terminalsscrew terminal - 1 x 6-6 mm²
Short-circuit Current3 kA
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536410050
Environment Attributes Main
- Ambient Air Temperature For Operation
- -55-55 °C, -55-55 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP2506027EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2506027EN
Ambient Air Temperature For Storage-55-100 °C, -55-100 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- power relay
Input Attributes
- Input Current
- 40 A
- Input Voltage
- 24 V DC
Input Resistance290 Ohm
