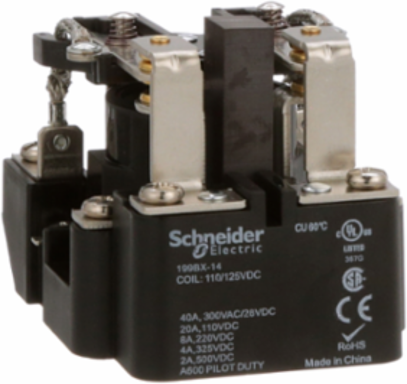

Schneider Electric 199BX-14 Power relay, SE Relays, DPDT, 40A, 120 VDC, magnetic blowout, open type
- MPN: 199BX-14
- PPN: SCH-199BX-14
CAD
$124.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The SE Relays 199 series, open type, heavy duty power relay offers high-capacity switching with high dielectric strength. High-power contacts rated of 40A resistive and 2hp at 120VAC to 600 VAC, input coil voltage 120VDC with DPDT silver alloy contact configuration. Riveted construction helps to increase the mechanical life of the relay.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
Physical Attributes
- Wire Stripping Length
- 8 mm
Complementary Attributes
- Maximum Horse Power Rating
- 2 hp 120...600 V AC 50/60 Hz
- Minimum Switching Current
- 1000 mA 5 V AC/DC
Maximum Switching Voltage600 V DC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Dielectric Strength
- 2200 V AC between coil and contact, 2200 V AC between poles1500 V AC between open contacts
- Drop-out Voltage Threshold
- >= 0.1 Uc AC/DC, >= 0.1 Uc AC/DC>= 0.1 Uc AC/DC, >= 0.1 Uc AC/DC
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- Y
- Weee Scope
- Out
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 4
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Average Impedance
- 4 mOhm
- Contacts Type And Composition
- 2 C/O
- Electrical Durability
- 100000 cycles resistive DC load
- Power Consumption In W
- 4-4 W DC
- Product Or Component Type
- power relay
- Sustainable Packaging
- No
- Tightening Torque
- 1.2-1.7 N.m
- Pep Code
- ENVPEP2506027EN
- [Ue] Rated Operational Voltage
- 6...600 V AC 50-60 Hz6...250 V DC
- Short-circuit Current
- 3 kA
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536490075
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Certificate AgencyUL Listed, CSA, CE
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1918
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier4
Function OptionStandard
Associated Fuse Rating50 A gG at 690 V coordination type 2 for power circuit
Contacts Materialsilver alloy contacts
Cover Typeopen cover
Power Consumption In Va10-10 VA AC
Product AvailabilityStock - Normally stocked in distribution facility
ReturnabilityYes
Switch FunctionDPDT
Voltage Range0.85...1.1 Un AC/DC
[Ie] Rated Operational Current40 A at 300 V AC (on resistive load) conforming to UL40 A at 28 V DC (on resistive load) conforming to UL20 A at 110 V DC (on resistive load) conforming to UL8 A at 220 V DC (on resistive load) conforming to UL4 A at 325 V DC (on resistive load) conforming to UL2 A at 500 V DC (on resistive load) conforming to UL
Connections - Terminalsscrew terminal - 1 x 6-6 mm²
Contact Blow-out Typemagnetic
Package Weight(Lbs)295 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -55-55 °C, -55-55 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP2506027EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2506027EN
Ambient Air Temperature For Storage-55-100 °C, -55-100 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- power relay
Input Attributes
- Input Current
- 40 A
- Input Voltage
- 110...125 V DC
Input Resistance6000 Ohm
