Power Supply, Standby, 24VDC Battery, 2.5 Amps, 120 or 240VAC Input, Red
Federal Signal

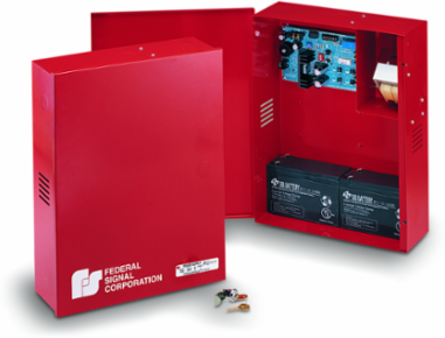

Federal Signal PS250 Power Supply, Standby, 24VDC Battery, 2.5 Amps, 120 or 240VAC Input, Red

  • MPN: PS250
  • UPC: 782979202424
  • PPN: FDS-PS250
  • UNSPSC: 46171602

CAD

$2043.13

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

SelecTone® Power Supplies provide nominal 12VDC or 24VDC power that is switch selectable. Models PS250, PS600 and PS1000 are designed for use as standby battery back-up during a power outage.The steel enclosure is designed to mount on a wall or substantial vertical surface (indoor only). A key lock is provided to discourage unauthorized access – simple lock installation is required.The power supply sub-assembly, which recharges the batteries, includes solid-state circuitry that provides DC operating voltage to units in a SelecTone® system, while maintaining a charge level on the batteries.All of the units can also be used as a primary 12V or 24V power source for other devices/systems. Model PS250 – Designed to use two 7 amp-hr, sealed lead-acid, gelled electrolyte batteries connected in series – is rated for 2.5 ampere, and is UL Listed.Model PS600 – Designed to use two 12 amp-hr, sealed lead-acid, gelled electrolyte batteries connected in series – is rated for 6 ampere, and is UL Listed.Model PS1000 –Designed to use two 12 amp-hr, sealed lead-acid, gelled electrolyte batteries connected in series – is rated for 10 ampere, and is UL Listed.Model PS1000-240 – Designed to use two 12 amp-hr, lead-acid, gelled electrolyte batteries connected in series - is rated for 10 ampere.

Features

  • Supplies 12VDC or 24VDC
  • Integrated battery charger
  • Choice of 7 or 12 amp-hour capacity
  • Meets NFPA standards
  • Type 1 enclosure
  • PS250, PS600, PS1000 are UL Listed
  • Batteries ordered separately

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
United States
Body Color
Red
Availability
In Stock - Ships in 2 Bus Days
Operating Temp.
+32° to +120°F (0° to +49°C)
Audible Signals Model Description
PS250
Height
15.5 in, 39.37 cm
Weight10.25 lbs
Certification ListingUL
Mount TypeWall
Operating Voltage120-240 Vac
Depth15.5 in, 39.37 cm
Width12.0 in, 30.48 cm
