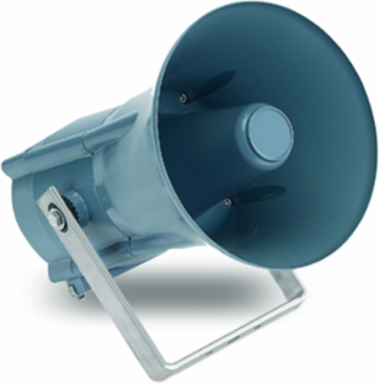

Federal Signal MS5-120-13EM Powered Loudspeaker, 25 Watt, 220/240VAC, Marine


Federal Signal MS5-120-13EM Powered Loudspeaker, 25 Watt, 220/240VAC, Marine
- MPN: MS5-120-13EM
- UPC: 782979219712
- PPN: FDS-MS5-120-13EM
- UNSPSC: 46171602
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3404.20/ EA
Description
Model MS Series Marine/Industrial Sounders and Loudspeakers are designed for rugged industrial applications where CE certification is required. MS Series is comprised of two separate products that serve a variety of applications. First is a sounder that includes fifteen standard tones with a common power input that accepts an AC or DC power source. Once power is applied, a single tone may be selected through the use of a remote contact input, or all fifteen tones may be accessed independently by providing a binary string of information, specific to each tone. This allows a certain sound to match a specific alarm condition.The second version of the MS Series is a powered loudspeaker. Once an AC or DC power source is applied, the powered loudspeaker is capable of amplifying a low-level audio signal, and reproducing it at 25 watts, depending on the model selected. MS Series Powered Loudspeakers are the perfect option for ECHO Intercom systems, where CE approval is required.Mounting is provided by a stainless-steel ratcheted mounting bracket that locks the sounder in position at a specific angle without slipping. The bottom surface of the mounting bracket also contains three mounting holes, to adapt to a variety of surfaces.Model MS Series 25 watt model is rated for both IP66 and IP67. All exterior cast aluminum surfaces are finished in gray powder coat paint and external hardware is manufactured from stainless steel to resist corrosion.
Features
- 25 watt, 123 dBa @ 1m
- On-board choice of 15 tones
- Remote tone selection
- Dual cable entries
- Integrated DC and AC voltages
- IP66 or IP67 enclosure
- CE Certified
Specifications
Specifications
- Country of Origin
- United States
- Weight
- 14.1 lbs
- Certification Listing
- CE
- Mount Type
- Surface
- Watts
- 25
- Width
- 9.02 in, 22.9108 cm
Depth12.4 in
Body ColorGray
dBa 1 Meter123
Operating Temp.-4˚ to +158˚F (-20˚ to +70˚C)
Audible Signals Voltage220/240VAC
