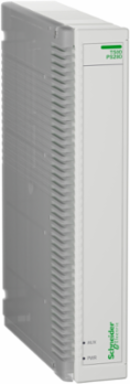

Schneider Electric EMS71120 power supply PowerLogic PS280/V2 hot-swappable T500 module to drive backplanes from 24Vdc inputs
- MPN: EMS71120
- PPN: SCH-EMS71120
CAD
$1768.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

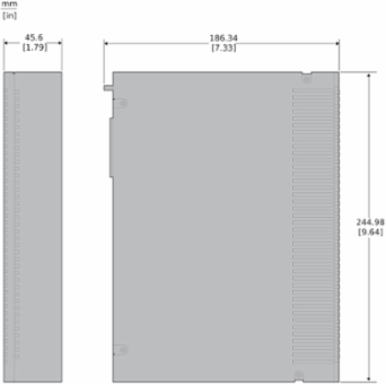

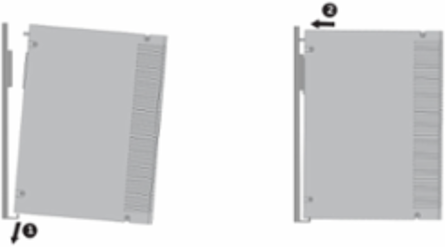

PowerLogic T500 is the next-gen substation controller platform. This hot-swappable power supply drives T500 backplanes from 24 Vdc sources. Hot-swappable, redundant operation. Install up to 2 redundant power supplies to improve system avaialbility. The product dimensions are 45mm in width, 245mm in height and 180mm in depth. This device is compliant wtih IEC 61850-3. Insert into any T500 backplane slot to provide stable and safe power to hot-swappable modules. Fix in place via frontal screw. Offering excellent performance, high scalability and full application modularity and extensive redundancy options. PowerLogic T500 satisfies the needs of the most demanding substation controller use cases.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Latvia, United States |
|---|
| Depth | 45 mm |
|---|
Environment Attributes Main
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | 0...6561.68 ft (0...2000 m) |
| Packaging Without Single Use Plastic | Yes |
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Ambient Air Temperature For Operation | -40-70 °C-40-70 °C |
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
Important Information Attributes
| Electromagnetic Compatibility | radiated emission class A (30...1000 MHz) conforming to EN 55022conducted emission class A (0.15...30 MHz) conforming to EN 55022electrostatic discharge - test level: level 4 criteria B conforming to IEC 61000-4-2radiated radio-frequency electromagnetic field immunity test - test level: level 4 criteria A (80...2700 MHz) conforming to IEC 61000-4-3electrical fast transient/burst immunity test - test level: level 4 criteria A conforming to IEC 61000-4-4, surge immunity test - test level: level 3 criteria A conforming to IEC 61000-4-5conducted RF disturbances - test level: level 3 criteria A conforming to IEC 61000-4-6, magnetic field at power frequency - test level: level 5 criteria B conforming to IEC 61000-4-8conducted disturbance emission - test level: level 4 criteria A conforming to IEC 61000-4-16damped oscillating waves - test level: level 3 conforming to IEC 61000-4-18 |
|---|---|
| Local Publishable Date | 2025-11-04 |
| Stocking Flag | Y |
| Device Type | Relay, Control & Measurement - Remote Terminal Unit / Feeder Automation |
| Field Service Division | DPIBS |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | Yes |
| Product Kit Identifier | N |
| Energy Efficiency Optimized | False |
| Operating Position | vertical |
| Product Or Component Type | power supply |
| Returnability | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Width Nominal | 245 mm |
| [Us] Rated Supply Voltage | 24 V DC |
| Package Weight(Lbs) | 1.136 kg |
| Warranty (In Months) | 18 |
| Local Data Status | Publishable |
|---|---|
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | No |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2419 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Device Short Name | PS280/V2 |
| Mounting Support | DIN rail |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | PowerLogic |
| Sustainable Packaging | No |
| Height Nominal | 180 mm |
| Certificate Agency | CE |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8504409580 |
General Attributes
| Product Or Component Type | power supply |
|---|
| Range Of Product | PowerLogic |
|---|
