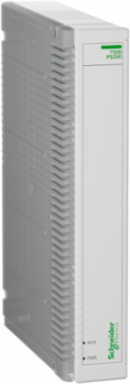

Schneider Electric EMS71130 power supply PowerLogic PS280/V2 hot-swappable T500 module to drive backplanes from 48Vdc inputs
- MPN: EMS71130
- PPN: SCH-EMS71130
CAD
$1881.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

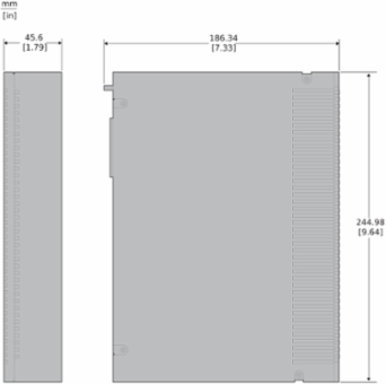

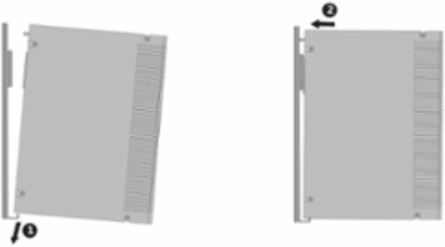

PowerLogic T500 is the next-gen substation controller platform. This hot-swappable power supply drives T500 backplanes from 48 Vdc sources. Hot-swappable, redundant operation. Install up to 2 redundant power supplies to improve system avaialbility. The product dimensions are 45mm in width, 245mm in height and 180mm in depth. This device is compliant wtih IEC 61850-3. Insert into any T500 backplane slot to provide stable and safe power to hot-swappable modules. Fix in place via frontal screw. Offering excellent performance, high scalability and full application modularity and extensive redundancy options. PowerLogic T500 satisfies the needs of the most demanding substation controller use cases.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Latvia, United States
Depth45 mm
Important Information Attributes
- Electromagnetic Compatibility
- radiated emission class A (30...1000 MHz) conforming to EN 55022conducted emission class A (0.15...30 MHz) conforming to EN 55022electrostatic discharge - test level: level 4 criteria B conforming to IEC 61000-4-2radiated radio-frequency electromagnetic field immunity test - test level: level 4 criteria A (80...2700 MHz) conforming to IEC 61000-4-3electrical fast transient/burst immunity test - test level: level 4 criteria A conforming to IEC 61000-4-4, surge immunity test - test level: level 3 criteria A conforming to IEC 61000-4-5conducted RF disturbances - test level: level 3 criteria A conforming to IEC 61000-4-6, magnetic field at power frequency - test level: level 5 criteria B conforming to IEC 61000-4-8conducted disturbance emission - test level: level 4 criteria A conforming to IEC 61000-4-16damped oscillating waves - test level: level 3 conforming to IEC 61000-4-18
- Local Publishable Date
- 2025-11-04
- Stocking Flag
- Y
- Device Type
- Relay, Control & Measurement - Remote Terminal Unit / Feeder Automation
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2419
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Device Short Name
- PS280/V3
- Mounting Support
- DIN rail
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- PowerLogic
- Sustainable Packaging
- No
- Height Nominal
- 180 mm
- Certificate Agency
- CE
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8504409580
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Field Service DivisionDPIBS
Weee Product Category5
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Product Kit IdentifierN
Energy Efficiency OptimizedFalse
Operating Positionvertical
Product Or Component Typepower supply
ReturnabilityNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Width Nominal245 mm
[Us] Rated Supply Voltage48 V DC
Package Weight(Lbs)1.142 kg
Warranty (In Months)18
General Attributes
- Product Or Component Type
- power supply
Range Of ProductPowerLogic
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-85 °C, -40-85 °C
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Packaging Without Single Use Plastic
- Yes
Take BackNo
China Rohs RegulationX
Ambient Air Temperature For Operation-40-70 °C-40-70 °C
Ip Degree Of ProtectionIP20 conforming to IEC 60529
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
