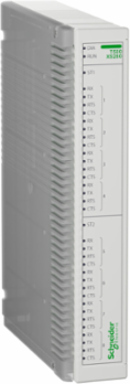

Schneider Electric EMS73100 PowerLogic XS280 hot-swappable T500 expansion module 8 serial ports
- MPN: EMS73100
- PPN: SCH-EMS73100
CAD
$1488.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

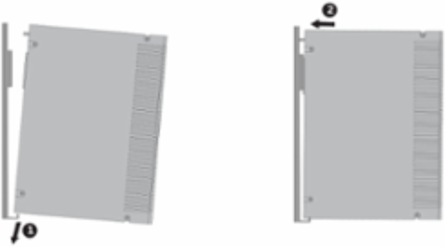

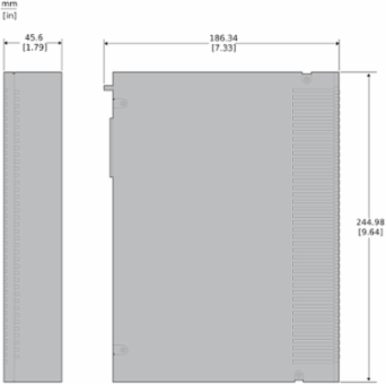

PowerLogic T500 is the next-gen substation controller platform. This hot-swappable serial expansion module provides 8 additional serial interfaces to T500 HU280 units to communicate using serial protocols. Hot-swappable, redundant operation, individually configurable settings for each physical port. XS280 units are only accessible to HU280 units installed in the same backplane. Serial communications connectable via RJ45 connectors. The product dimensions are 45mm in width, 245mm in height and 180mm in depth. This device is compliant wtih IEC 61850-3. Insert into any T500 backplane slot to provide system control and communications functions. Fix in place via frontal screw. Offering excellent performance, high scalability and full application modularity and extensive redundancy options. PowerLogic T500 satisfies the needs of the most demanding substation controller use cases.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Latvia, United States |
|---|
| Depth | 178.21 mm |
|---|
Communications & Management Attributes
| Communication Port Protocol | DNP3, IEC 60870-5-101, IEC 60870-5-103, Modbus serial |
|---|
| Communication Port Support | RS485/RS232, RS422 |
|---|
Important Information Attributes
| Local Data Status | Publishable |
|---|---|
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | No |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2419 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Connector Type | RJ45 |
| Energy Efficiency Optimized | False |
| Product Or Component Type | Expansion Module |
| Returnability | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Width Nominal | 45 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8538908180 |
| Local Publishable Date | 2025-11-04 |
|---|---|
| Stocking Flag | Y |
| Device Type | Relay, Control & Measurement - Remote Terminal Unit / Feeder Automation |
| Field Service Division | DPIBS |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | Yes |
| Product Kit Identifier | N |
| Device Short Name | XS280 |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | PowerLogic |
| Sustainable Packaging | No |
| Height Nominal | 244.51 mm |
| Certificate Agency | CE |
| Package Weight(Lbs) | 890.000 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -40-70 °C, -40-70 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Operating Altitude | 0...6561.68 ft (0...2000 m) |
| Packaging Without Single Use Plastic | Yes |
General Attributes
| Product Or Component Type | Expansion Module |
|---|
| Range Of Product | PowerLogic |
|---|
