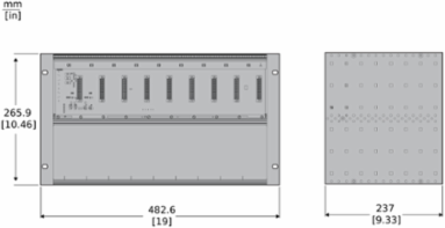

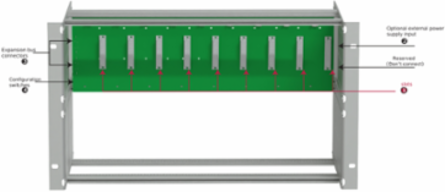

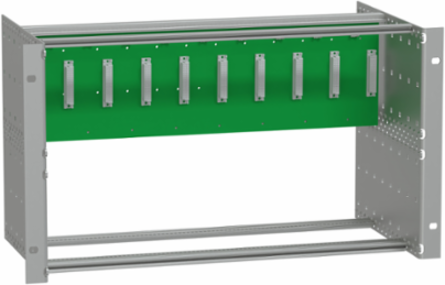

Schneider Electric EMS70290 backplane PowerLogic BP270/N9 rack-mount T500 internal bus with 9 slots for hot-swappable modules
- MPN: EMS70290
- PPN: SCH-EMS70290
- UNSPSC: 39121108
CAD
$1071.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
PowerLogic T500 is the next-gen substation controller platform. This rack-mounted backplane has 9 slots for T500 hot-swappable modules. Expand with remote T500 backplanes using its expansion ports. T500 module slots have DIN416-F type connectors. This device is compliant wtih IEC 61850-3. Rackmount assembly using 4 screws. Expand using 1.5Mbps RS-485 cables with 50 ohm impedance connected to the embedded female DB9 connectors. Offering excellent performance, high scalability and full application modularity and extensive redundancy options. PowerLogic T500 satisfies the needs of the most demanding substation controller use cases.
Features
- Robust and backwards compatible internal bus
- Expandable to accomodate growing I/O modules
- Support redundant power supplies and head units
- Hot-swappable hardware modules to minimise maintenance
- Visual indication of internal bus activity to improve maintainability
- Extended mission profile -40°C to 70°C / -40 to 158 °F
- Conformal coating to protect against corrosion & moisture
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Latvia, United States |
|---|
Communications & Management Attributes
| Communication Port Support | 2 - DB9 |
|---|
Important Information Attributes
| Electromagnetic Compatibility | radiated emission class A (30...1000 MHz) conforming to EN 55022conducted emission class A (0.15...30 MHz) conforming to EN 55022electrostatic discharge - test level: level 4 criteria B conforming to IEC 61000-4-2radiated radio-frequency electromagnetic field immunity test - test level: level 4 criteria A (80 MHz...2.7 GHz) conforming to IEC 61000-4-3electrical fast transient/burst immunity test - test level: level 4 criteria A conforming to IEC 61000-4-4, surge immunity test - test level: level 3 criteria A conforming to IEC 61000-4-5conducted RF disturbances - test level: level 3 criteria A conforming to IEC 61000-4-6, magnetic field at power frequency - test level: level 5 criteria B conforming to IEC 61000-4-8conducted disturbance emission - test level: level 4 criteria A conforming to IEC 61000-4-16damped oscillating waves - test level: level 3 conforming to IEC 61000-4-18 |
|---|---|
| Local Data Status | Publishable |
| Return Indicator | N |
| Serviceability | No |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2419 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Energy Efficiency Optimized | False |
| Number Of Slots | 9 |
| Product Name | PowerLogic T500 |
| Range | PowerLogic |
| Sustainable Packaging | No |
| Certificate Agency | CE |
| Customs Code | 8536908585 |
| Environmental Characteristic | exposure to cold 16 h conforming to -40 °C conforming to EN 60068-2-1, exposure to dry heat 16 h conforming to 85 °C conforming to EN 60068-2-2exposure to damp heat in service for 2 cycles 24 h (95-95 %) conforming to 55 °C conforming to EN 60068-2-30 |
|---|---|
| Local Publishable Date | 2025-11-04 |
| Device Type | Relay, Control & Measurement - Remote Terminal Unit / Feeder Automation |
| Field Service Division | DPIBS |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | Yes |
| Product Kit Identifier | N |
| Fixing Mode | by 4 screws 19" rack |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Or Component Type | backplane |
| Returnability | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -40-70 °C, -40-70 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | 0...6561.68 ft (0...2000 m) |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Packaging Made With Recycled Cardboard | No |
| Product Compatibility | internal bus |
General Attributes
| Product Or Component Type | backplane |
|---|
