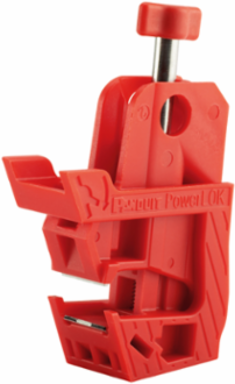

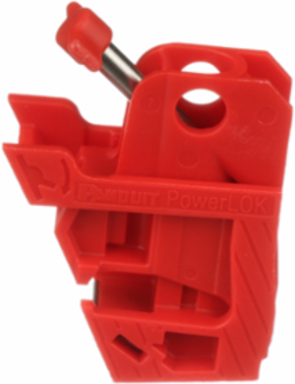

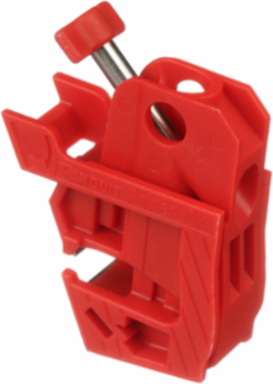

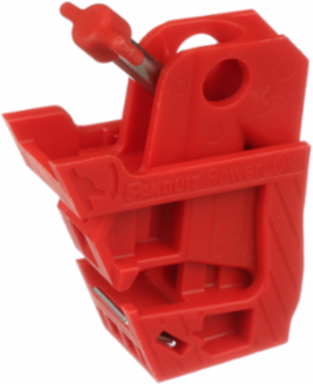

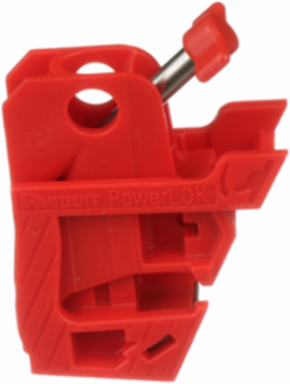

Panduit PSL-PCBNT PowerLOK Circuit Breaker Lockout, Nylon, 0.74" x 2.24"
Panduit PSL-PCBNT PowerLOK Circuit Breaker Lockout, Nylon, 0.74" x 2.24"
- MPN: PSL-PCBNT
- UPC: 074983473861
- PPN: PAN-PSL-PCBNT
- UNSPSC: 39121901
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$36.55/ EA
Description
The PSL-PCBNT PowerLOK No-Tool Circuit Breaker Lockout device provides a versatile, easy to use lockout/tagout device. These devices can be applied to single or multi-pole circuit breakers (such as 120/277V breakers) to prevent the breaker from being turned back on; for the safe performance of maintenance or service in accordance with lockout/tagout procedures. Nylon. 2.24" x 0.74" (57 mm x 18.8 mm). Color Red. 1 per package.
Specifications
Specifications
- Country of Origin
- Costa Rica
- Product Segment
- IEI
- Overall Length (mm)
- 18.8
- Sub Brand
- PowerLOK™
- Maximum Operating Temperature (°C)
- 121
- Minimum Operating Temperature (°C)
- -40
- Product Type
- Circuit Breaker Lockout
- Color
- Red
- Overall Length (In.)
- 0.74
Any Reason Not to SellN
Mount MethodNo Tool
ApplicationPowerLOK™ provide a versatile, easy to use lockout/tagout device. These devices can be applied to single or multi-pole circuit breakers (such as 120/277V breakers) to prevent the breaker from being turned back on; for safe performance of maintenance or service in accordance with lockout/tagout procedures.
Overall Width (In.)2.24
MaterialNylon
Maximum Operating Temperature (°F)250
EnvironmentHarsh
Overall Width (mm)57
Minimum Operating Temperature (°F)-40
Packaging Details
- UPC
- 07498347386
- Standard Package Volume Ft3
- 0.0077
- Std Package Height In
- 1.3
- Std Package Length In
- 5
- Std Package Width In
- 2.8
- Std. Pkg. UOM
- Piece
- Std. Pkg. Qty.
- 1
- Standard Carton Volume Ft3
- 0.0771
- Std Carton Height In
- 3.1
- Std Carton Length In
- 8.65
- Std Carton Width In
- 5.65
- Std Ctn Qty
- 10
- EAN
- 00074983473861
- California Pro65 Cancer
- No
- Mercury Content Indicator
- N
- Hazardous Material Flag
- N
- Pallet Quantity
- 9,600
- Pallet Weight
- 624.0000
GTIN Package00074983473861
Standard Package Weight Pounds0.0650
Std Package Height MM33.02
Std Package Length MM127
Std Package Width MM71.12
UOM EA PKEA
GTIN Carton50074983473866
Standard Carton Weight Pounds0.6500
Std Carton Height MM78.74
Std Carton Length MM219.71
Std Carton Width MM143.51
Min. Order UOMPiece
REACH StatusN
ARRA CompliantY
Lead Content IndicatorN
Min Order Qty5.0000
Pallet Volume74.045434
RoHS CompliantRoHS directive is not applicable
