Square D 9421LZL250H46 PowerPact Type LZ Operating Mechanism, 250A with 6 Inch Handle
Square D 9421LZL250H46 PowerPact Type LZ Operating Mechanism, 250A with 6 Inch Handle
- MPN: 9421LZL250H46
- UPC: 785901521426
- PPN: SCH-9421LZL250H46
- UNSPSC: 39121601
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$409.75/ EA
Description

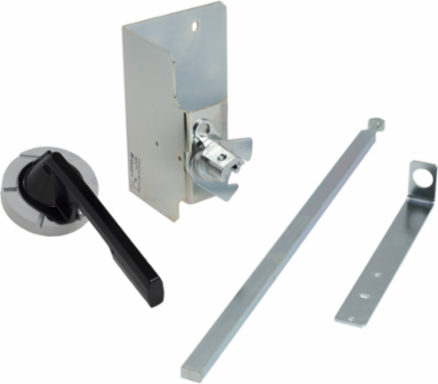

Type L door mounted, variable depth operating mechanisms feature heavy duty and all metal construction. They include trip indication for easy visual identification. These door mount operating mechanism kits include an operating mechanism, an operating handle and an operating shaft. The proper circuit breaker must be purchased separately. The operating mechanism in this kit will work with PowerPacT C, H, J and NSF circuit breakers up to 250 A. Kit contains a 6 inch long painted handle that is rated NEMA 1/3/3R/4. The kit contains a long shaft. Mounting depth for this kit is 5.50 inches to 21.37 inches. Kit is UL component recognized and CSA certified.
Features
- Used with all disconnect switch and circuit breaker installations
- Designed for variable depth, flange mounting applications
- Kit contains all parts necessary for conveniently mounting the handle to the flange of the enclosure
- Two mounting methods offered for flexibility
- Disconnect switches were designed for control panel installations
Specifications
Environment Attributes Main
- China ROHS Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- ROHS Exemption Information
- Yes
- Reach Free SHVC
- Yes
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of SVHC
- Yes
EU ROHS DirectiveCompliant , Compliant
Take BackNo
Halogene PerformanceHalogen free plastic parts product
Toxic Heavy Metal FreeYes
Halogen Content PerformanceHalogen free plastic parts product
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Circuit Breaker Name
- MG-NSF 250 A, PowerPact H or J 250 A
- Local Publishable Date
- 2025-11-13
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- ROHS EUR In Scope
- Yes
- ROHS EUR Full Compliance Status
- Compliant
- China ROHS In Scope
- No
- Without Single Use Plastic
- No
- Return Indicator
- N
- Function Option
- Standard
- Halogen Free Status
- Halogen free plastic parts product
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- 9421L
- Sustainable Packaging
- No
- Stocking Flag
- Y
- Global Commercial Status
- Commercialised
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Legacy WEEE ScopeIn
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdCOMPLIANT
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Energy Efficiency OptimizedFalse
Package Weight Lbs3.084 kg
Product Or Component TypeOperating Mechanism
ReturnabilityNo
Medium DescOperating Mechanism, Type LZ, door mount, 250A mechanism, 6 inch handle, long shaft, for PowerPacT C, H, J and NSF
Product Kit IdentifierN
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
General Attributes
- Product Or Component Type
- Operating Mechanism
Range Of Product9421L
