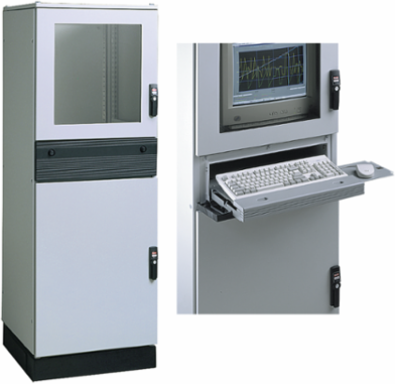

nVent Hoffman PPC1666 PROLINE-PC Modular Enclosure Type 12, 1600x600x600, Lt Gray, Steel
- MPN: PPC1666
- UPC: 783510987909
- PPN: HOF-PPC1666
- UNSPSC: 39121334
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
ProLine-PC Modular Enclosures are ideal applications requiring multiple configuration possibilities. This PROLINE-PC Modular Enclosure Type 12, PPC1666 item measures 1600x600x600mm with a material of Steel colored Lt Gray.
Features
- Frame is enclosed with solid sides, a solid top and a 100-mm solid base.
- Three doors, two in front and one in back, provide convenient access
- Sealed keyboard compartment maintains enclosure integrity when the compartment door is opened
- The 19-in. diagonal top window door, hinged on the left, offers viewing access for a variety of monitor sizes and has a small flush swing handle with keylock for system security
- The vented frame shelf in the top compartment is constructed of 14 gauge steel and is painted with RAL 7035 textured light-gray polyester powder paint
- The ProLine keyboard compartment includes a locking feature, an angled palm rest, a cable access port for wiring and integral mouse pad holders for both left-handed and right-handed people
- The accessory front opening accommodates a number of optional components, such as keyboard shelves and control compartments
- The bottom compartment includes a solid door hinged on the left that has a small flush swing handle with key lock; compartment can be used to install computer equipment, panel-mounted equipment or rack mounted control systems
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 600
- Protection Rating
- NEMA Type 12
- Finish
- Powder Coated
- Thickness (T)
- 1.52
- Top Door Opening Width
- 21.1
- IP Rating
- IP55
- Sub Brand
- ProLine
- Size
- 1600x600x600mm
- NEMA Rating
- 12 Indoor, dust-resistant
Height (H)1,600
Depth (D)600
Product FamilyProLine
Color CodeRAL 7035
Top Door Opening Height21.97
Bottom Door Opening Height29.09
Weight268
MaterialSteel
ColorLtGray
