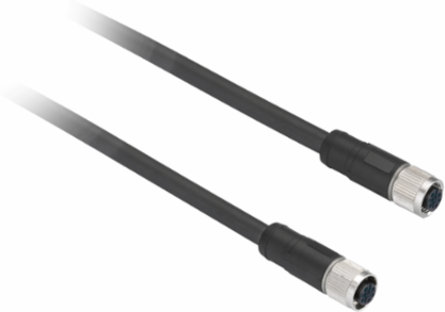

Telemecanique Sensors XZCPV11V12L2 Pre wired connectors XZ, straight female, M12, 5 pins, cable PVC 2 m
Telemecanique Sensors XZCPV11V12L2 Pre wired connectors XZ, straight female, M12, 5 pins, cable PVC 2 m
- MPN: XZCPV11V12L2
- PPN: TES-XZCPV11V12L2
- UNSPSC: 32151902
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$26.50/ EA
Description
Pre wired connectors XZ, straight female, M12, 5 pins, cable PVC 2 m
Specifications
Environment
- Product Certifications
- cULus
- Ambient Air Temperature For Storage
- -25-80 °C
Ambient Air Temperature For Operation-25-80 °C static
Ip Degree Of ProtectionIP67 || IP65
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mercury FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Complementary
- Collar Material
- metal
- Cable Outer Diameter
- 5.2 mm
- Wire Insulation Material
- PVC
- Cable Connector Fixing
- screw-on
- Line Rated Current
- 3 A
- Status Led
- without
- Contact Resistance
- 5000 µOhm
Electrical Connectionstraight female connector M12, 5 pins
Minimum Insulating Resistance1 GΩ
[Ue] Rated Operational Voltage60 V AC || 75 V DC
Cable Length2 m
Cable Composition5 x 0.34 mm²
Net Weight0.09 kg
Specifications
- Series Name
- general purpose
- Accessory / Separate Part Category
- cabling accessory
Range Of ProductTelemecanique Cabling components
Accessory / Separate Part Typepre-wired connectors
