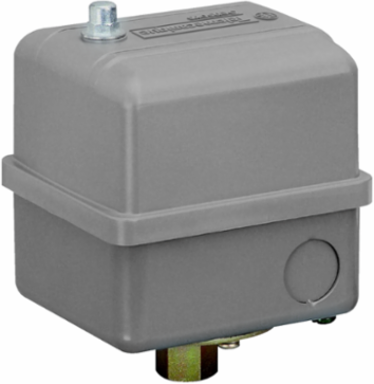

Telemecanique Sensors 9013GHG3J58X Square D Pumptrol, pump or compressor switch 9013GH, adjustable diff., 125 150 PSI
- MPN: 9013GHG3J58X
- UPC: 785901962298
- PPN: TES-9013GHG3J58X
- UNSPSC: 39122210
CAD
$191.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Square D Pumptrol, pump or compressor switch 9013GH, adjustable diff., 125 150 PSI
Documentation & Downloads
Specifications
Key Specifications
| Range Of Product | Square D Pumptrol |
|---|---|
| Product Specific Application | control electrically driven water pumps and air compressors |
| Electrical Circuit Type | power circuit |
| Type Of Packing | individual |
| Value Of Setting | 125...150 psi |
|---|---|
| Quantity Per Set | 1 |
| Pressure Sensor Size | 200 psi 40-170 psi) |
| Pressure Sensor Name | 9013GH |
Complementary
| Cable Entry Number | 3 knock-outs for 1/2" conduit UL 508 |
|---|---|
| Pressure Sensor Type | electromechanical pressure switch |
| Materials In Contact With Fluid | zinc plated steel or equivalent flange || nitrile (Buna-N) or equivalent rubber diaphragm |
| Approximate Adjustable Differential | 20-40 psi |
| Terminals Description Iso N°1 | L1-T1 || L2-T2 |
| Controlled Fluid | air -22-257 °F) || fresh water -22-257 °F) |
| Repeat Accuracy | +/- 3 % |
| Scale Type | adjustable differential |
| Material | polypropylene cover || noryl thermoplastic resin or equivalent cover |
| Factory Modification | 2-way pressure release valve |
| Maximum Operating Rate | 10 cyc/mn |
| Width | 4.19 in |
| Motor Power Kw | 1.5 kW 2 hp)115 V AC, 1 phase || 2.2 kW 3 hp)115 V AC, 3 phases || 2.2 kW 3 hp)230 V AC, 1 phase || 0.75 kW 1 hp)115 V DC || 0.75 kW 1 hp)230 V DC || 3.75 kW 5 hp)230 V AC, 3 phases || 3.7 kW 5 hp)460 V AC, 1 phase || 3.7 kW 5 hp)460 V AC, 3 phases || 3.7 kW 5 hp)575 V AC, 1 phase || 3.7 kW 5 hp)575 V AC, 3 phases |
| Destruction Pressure | 300 psi |
| Net Weight | 2.25 lb(US) |
| Fluid Connection Type | 0.375 inch NPSF internal UL 508 |
| Electrical Connection | screw-clamp terminals 10 AWG || screw-clamp terminals 5.261 mm² |
|---|---|
| Pressure Actuator | diaphragm |
| Height | 5.4 in |
| Terminal Block Type | 4 terminals |
| [Ui] Rated Insulation Voltage | 575 V UL 508 |
| Short-Circuit Protection | 20 A cartridge fuse gG |
| Setting | internal |
| Mechanical Durability | 300000 cycles |
| Pressure Switch Type Of Operation | regulation between 2 thresholds |
| Operating Position | any position |
| Contacts Type And Composition | 2 NC, snap action, DPST-DB, Form YY |
| Depth | 3.88 in |
| Adjustable Range On Rising Pressure | 65-200 psi |
| Local Display | without |
| Electrical Durability | 100000 cycles 10 cyc/mn |
Environment
| Product Certifications | CSA file LR25490 || UL listed file E12158 |
|---|---|
| Ambient Air Temperature For Storage | -33-257 °F |
| Nema Degree Of Protection | NEMA 1 UL 50 |
| Ip Degree Of Protection | IP20 IEC 60529 |
| Ambient Air Temperature For Operation | -33-257 °F |
|---|---|
| Standards | NSF ANSI 372 || UL 508 || CE |
| Protective Treatment | none |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Circularity Profile | ENVEOLI111210EN |
|---|---|
| Mercury Free | Yes |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP111211EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
