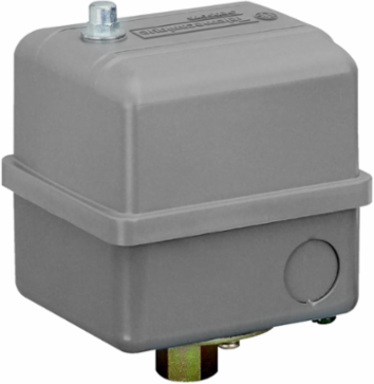

Telemecanique Sensors 9013GHG2J30X Pressure switch, 9013G, pressure range 80 to 100 psi, adjustable differential, for pump or air compressor, Pumptrol, factory modification 2-way pressure release valve
- MPN: 9013GHG2J30X
- UPC: 785901559665
- PPN: TES-9013GHG2J30X
CAD
$191.13
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Pressure switch, 9013G, pressure range 80 to 100 psi, adjustable differential, for pump or air compressor, Pumptrol, factory modification 2-way pressure release valve
Documentation & Downloads
Specifications
Key Specifications
| Indivisible sale quantity | 1 |
|---|
| Commercial status | Commercialised |
|---|
Complementary
| Pressure sensor type | Electromechanical pressure switch |
|---|---|
| Pressure switch type of operation | Regulation between 2 thresholds |
| Setting | Internal |
| Local display | Without |
| Electrical connection | Screw-clamp terminals, clamping capacity: 10 AWG, screw-clamp terminals, clamping capacity: 5.261 mm² |
| Fluid connection type | 0.25 inch NPSF internal conforming to UL 508 |
| Operating position | Any position |
| Operating rate | 10 cycles/min |
| Terminals description ISO n°1 | L1-T1 L2-T2 |
| Controlled fluid | Air (32-158 °F), fresh water (32-158 °F) |
|---|---|
| Pressure actuator | Diaphragm |
| Scale type | Adjustable differential |
| Contacts type and composition | 2 NC, snap action, DPST-DB, Form YY |
| Materials in contact with fluid | Zinc plated steel or equivalent flange, nitrile (Buna-N) or equivalent rubber diaphragm |
| Material | Polypropylene: cover, noryl thermoplastic resin or equivalent: cover |
| Terminal block type | 4 terminals |
| Repeat accuracy | +/- 3 % |
Main
| Range of product | Pumptrol |
|---|---|
| Value of setting | 80...100 psi |
| Product specific application | Control electrically driven water pumps and air compressors |
| Type of packing | Individual |
| Pressure sensor name | 9013GH |
|---|---|
| Electrical circuit type | Power circuit |
| Quantity per set | 1 |
| Factory modification | 2-way pressure release valve |
Environment
| Standards | CE NSF ANSI 372 UL 508 |
|---|---|
| NEMA degree of protection | NEMA 1 conforming to UL 50 |
| Product certifications | CSA UL listed |
|---|---|
| IP degree of protection | IP20 conforming to IEC 60529 |
