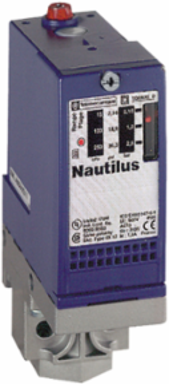

Telemecanique Sensors XMLA035B2S11 Pressure switch, XMLA, pressure range 35 bar, fixed scale, 1CO, 1 threshold, Cable gland 9-13 mm, Brass FPM, FKM
- MPN: XMLA035B2S11
- PPN: TES-XMLA035B2S11
CAD
$484.03
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Pressure switch, XMLA, pressure range 35 bar, fixed scale, 1CO, 1 threshold, Cable gland 9-13 mm, Brass FPM, FKM
Documentation & Downloads
Specifications
Key Specifications
| Indivisible sale quantity | 1 |
|---|
| Commercial status | Commercialised |
|---|
Complementary
| Terminal block type | 4 terminals |
|---|---|
| Auxiliary contacts operation | Snap action |
| Resistance across terminals | 25 mOhm conforming to IEC 255-7 category 3, 25 mOhm conforming to NF C 93-050 method A |
| Operating rate | 120 cyc/mn |
|---|---|
| Contacts material | Silver contacts |
| Setting | External |
Environment
| Standards | CE CSA C22.2 No 14 IEC 60947-5-1 UL 508 |
|---|---|
| Protective treatment | TC standard version |
| Vibration resistance | 4 gn conforming to IEC 60068-2-6 (f = 30-500 Hz) |
| Electrical shock protection class | Class I conforming to IEC 1140, class I conforming to IEC 536, class I conforming to NF C 20-030 |
| Product certifications | BV CCC CSA LROS (Lloyds register of shipping) UL |
|---|---|
| Operating position | Any position |
| Shock resistance | 50 gn conforming to IEC 60068-2-27 |
| IP degree of protection | IP66 conforming to IEC 60529 |
Main
| Range of product | Telemecanique Pressure sensors XM |
|---|---|
| Pressure sensor type | Electromechanical pressure sensor |
| Controlled fluid | Air (0-160 °C), fresh water (0-160 °C), hydraulic oil (0-160 °C) |
| Electrical connection | Screw-clamps terminals, 1 x 0.5...2 x 2.5 mm², 1 connector Pg 13 |
| Cable entry | Cable gland 9-13 mm |
| Pressure switch type of operation | Detection of 1 single threshold |
| Scale type | Fixed differential |
| Pressure actuator | Diaphragm |
| Enclosure material | Zinc alloy |
| Product or component type | Electromechanical pressure sensor |
|---|---|
| Device short name | XMLA |
| Fluid connection type | G 1/4 (female) conforming to ISO 228 |
| AWG gauge | AWG 20...AWG 14 |
| Contacts type and composition | 1 C/O |
| Electrical circuit type | Control circuit |
| Local display | With |
| Materials in contact with fluid | Brass FPM, FKM |
