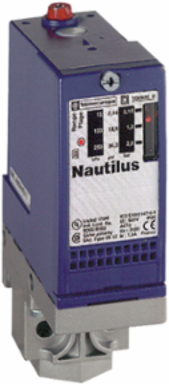

Telemecanique Sensors XMLA010B2S11 pressure switch XMLA 10 bar - fixed scale 1 threshold - 1 C/O

This 10bar pressure switch is part of the XML range, an offer of electromechanical pressure and vacuum switches. This switch has a fixed differential and is designed for detection of a single threshold. The function of pressure switches is the control or regulation of pressure levels in hydraulic systems. They transform the pressure change into a digital electrical signal when the preset switching points are reached. This pressure switch has a setting scale and an adjustable range of switching point, or rising pressure, from 0.6bar to 10bar (8.7psi to 145psi). Thanks to the electromechanical technology, this product is reliable and simple to use. It incorporates one C/O single-pole contact, snap action. It has a diaphragm pressure actuator. This pressure switch features a zinc alloy case, a G 1/4 female fluid connector and one entry tapped for n°13 gable gland. Electrical connection with screw-clamps terminals. This pressure switch is suitable for controlling hydraulic oils, fresh water and air up to +160°C. It complies with UL, CSA, EAC, CCC, BV, LROS certifications, and with CE, IEC/EN 60947-5-1, UL 508, CSA C22-2 no. 14 standards. Dedicated accessories, to be ordered separatly, are available to facilitate the setting or protect the switch. Knurled adjustment knob, fixing plate, lead sealable protective cover, sealing gaskets, etc. This switch operates in all positions. The XML range brings high level of reliability and quality, long life duration, and a worldwide availability.
