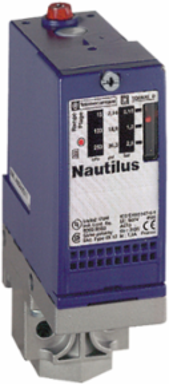

Telemecanique Sensors XMLA070E2S11 pressure switch XMLA 70 bar - fixed scale 1 threshold - 1 C/O

MPN: XMLA070E2S11
PPN: TES-XMLA070E2S11
UNSPSC: 39122210

$379.40

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

pressure switch XMLA 70 bar - fixed scale 1 threshold - 1 C/O

Documentation & Downloads

Specifications

Key Specifications

Contacts Type And Composition	1 C/O
Pressure Actuator	piston
Range Of Product	Telemecanique Pressure sensors XM
Pressure Switch Type Of Operation	detection of 1 single threshold
Product Or Component Type	electromechanical pressure sensor
Materials In Contact With Fluid	FPM, FKM \|\| 316L stainless steel \|\| PTFE \|\| brass
Fluid Connection Type	G 1/4 (female) ISO 228
Controlled Fluid	fresh water 0-160 °C)
Scale Type	fixed differential
Enclosure Material	zinc alloy
Maximum Permissible Accidental Pressure	160 bar
Device Short Name	XMLA

Pressure Sensor Type	electromechanical pressure sensor
Electrical Connection	screw-clamps terminals, 1 x 0.5...2 x 2.5 mm² \|\| 1 connector Pg 13
[In] Rated Current	3 A, B300, AC-15 (Ue = 120 V)EN/IEC 60947-5-1 \|\| 1.5 A, B300, AC-15 (Ue = 240 V)EN/IEC 60947-5-1 \|\| 0.1 A, R300, DC-13 (Ue = 250 V)EN/IEC 60947-5-1
Cable Entry	cable gland 9-13 mm
Adjustable Range Of Switching Point On Falling Pressure	2-62.5 bar
Local Display	with
Pressure Sensor Size	70 bar
Awg Gauge	AWG 20...AWG 14
Electrical Circuit Type	control circuit
Adjustable Range Of Switching Point On Rising Pressure	5-70 bar
Destruction Pressure	320 bar

Complementary

Repeat Accuracy	2 %
Terminal Block Type	4 terminals
Natural Differential At High Setting	7.5 bar +/- 1 bar)
Auxiliary Contacts Operation	snap action
[Uimp] Rated Impulse Withstand Voltage	6 kV EN/IEC 60947-1
Maximum Operating Rate	60 cyc/mn
Setting	external
Width	35 mm
Natural Differential At Low Setting	3 bar +/- 1 bar)

Height	113 mm
Short-Circuit Protection	10 A cartridge fuse gG (gl)
Contacts Material	silver contacts
Net Weight	0.695 kg
Maximum Permissible Pressure - Per Cycle	90 bar
[Ui] Rated Insulation Voltage	300 V UL 508 \|\| 500 V EN/IEC 60947-1 \|\| 300 V CSA C22.2 No 14
Mechanical Durability	6000000 cycles
Depth	75 mm
Maximum Resistance Across Terminals	25 mOhm IEC 255-7 category 3 \|\| 25 mOhm NF C 93-050 method A

Environment

Product Certifications	UL \|\| CCC \|\| EAC \|\| CSA \|\| BV \|\| LROS (Lloyds register of shipping)
Standards	CE \|\| EN/IEC 60947-5-1 \|\| UL 508 \|\| CSA C22.2 No 14
Shock Resistance	50 gn IEC 60068-2-27
Ambient Air Temperature For Storage	-40-70 °C
Operating Position	any position

Ambient Air Temperature For Operation	-25-70 °C
Vibration Resistance	4 gn 30-500 Hz)IEC 60068-2-6
Ip Degree Of Protection	IP66 EN/IEC 60529
Protective Treatment	TC standard version
Electrical Shock Protection Class	class I IEC 1140 \|\| class I IEC 536 \|\| class I NF C 20-030

Contractual warranty

Warranty	18 months

Offer Sustainability

Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP110914EN
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
