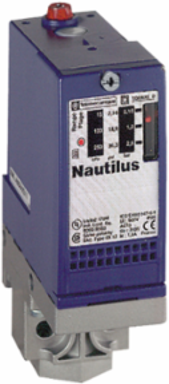

Telemecanique Sensors XMLA300D2S11 pressure switch XMLA 300 bar - fixed scale 1 threshold - 1 C/O
- MPN: XMLA300D2S11
- PPN: TES-XMLA300D2S11
- UNSPSC: 39122210
CAD
$333.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This XMLA electromechanical pressure switch has an adjustable differential for detection of a single threshold and a zinc alloy body with a range scale window. This pressure switch is designed for detection of a single pressure threshold in hydraulic oils up to 160°C. It is fixed directly on tubage. It provides zinc alloy enclosure for robust performance. 6 million cycles mechanical durability for minimum required maintenance on your pressurized fluid circuits. It complies with CCC, EN/IEC 60947-5-1, CSA C22.2 No.14, LROS, UL 508, EAC, BV. It is designed for very high pressures up to 300bar, this makes it ideal for hydraulic presses, water jet cutting machines.
Documentation & Downloads
Specifications
Key Specifications
| Contacts Type And Composition | 1 C/O |
|---|---|
| Pressure Actuator | piston |
| Range Of Product | Telemecanique Pressure sensors XM |
| Pressure Switch Type Of Operation | detection of 1 single threshold |
| Product Or Component Type | electromechanical pressure sensor |
| Materials In Contact With Fluid | steel || brass || PTFE || FPM, FKM |
| Fluid Connection Type | G 1/4 (female) ISO 228 |
| Controlled Fluid | hydraulic oil 0-160 °C) |
| Scale Type | fixed differential |
| Enclosure Material | zinc alloy |
| Maximum Permissible Accidental Pressure | 675 bar |
| Device Short Name | XMLA |
| Pressure Sensor Type | electromechanical pressure sensor |
|---|---|
| Electrical Connection | screw-clamps terminals, 1 x 0.5...2 x 2.5 mm² || 1 connector Pg 13 |
| Line Rated Current | 3 A, B300, AC-15 (Ue = 120 V)EN/IEC 60947-5-1 || 1.5 A, B300, AC-15 (Ue = 240 V)EN/IEC 60947-5-1 || 0.1 A, R300, DC-13 (Ue = 250 V)EN/IEC 60947-5-1 |
| Cable Entry | cable gland 9-13 mm |
| Adjustable Range Of Switching Point On Falling Pressure | 3.5-265 bar |
| Local Display | with |
| Pressure Sensor Size | 300 bar |
| Awg Gauge | AWG 20...AWG 14 |
| Electrical Circuit Type | control circuit |
| Adjustable Range Of Switching Point On Rising Pressure | 20-300 bar |
| Destruction Pressure | 1350 bar |
Complementary
| Repeat Accuracy | 2 % |
|---|---|
| Terminal Block Type | 4 terminals |
| Natural Differential At High Setting | 35 bar +/- 6 bar) |
| Auxiliary Contacts Operation | snap action |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV EN/IEC 60947-1 |
| Maximum Operating Rate | 60 cyc/mn |
| Setting | external |
| Width | 35 mm |
| Natural Differential At Low Setting | 16.5 bar +/- 3 bar) |
| Height | 113 mm |
|---|---|
| Short-Circuit Protection | 10 A cartridge fuse gG (gl) |
| Contacts Material | silver contacts |
| Net Weight | 0.75 kg |
| Maximum Permissible Pressure - Per Cycle | 375 bar |
| [Ui] Rated Insulation Voltage | 300 V UL 508 || 500 V EN/IEC 60947-1 || 300 V CSA C22.2 No 14 |
| Mechanical Durability | 3000000 cycles |
| Depth | 75 mm |
| Maximum Resistance Across Terminals | 25 mOhm IEC 255-7 category 3 || 25 mOhm NF C 93-050 method A |
Environment
| Product Certifications | UL || CSA || BV || LROS (Lloyds register of shipping) || CCC || EAC |
|---|---|
| Standards | UL 508 || IEC 60947-5-1 || CSA C22.2 No 14 || CE || EN/IEC 60947-5-1 || EN 60947-5-1 |
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Operating Position | any position |
| Ambient Air Temperature For Operation | -25-70 °C |
|---|---|
| Vibration Resistance | 4 gn 30-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection | IP66 conforming to EN/IEC 60529 |
| Protective Treatment | TC standard version |
| Electrical Shock Protection Class | class I IEC 1140 || class I IEC 536 || class I NF C 20-030 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP110914EN |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
