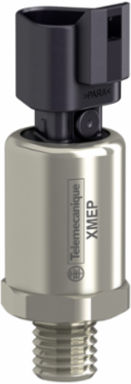

Telemecanique Sensors XMEP7K5PT730 Electronic pressure sensors, Pressure sensors XM, transmitter, XMEP, 7500 PSI, 1/4"18NPT, 0...10 V, Deutsch, set of 1
Telemecanique Sensors XMEP7K5PT730 Electronic pressure sensors, Pressure sensors XM, transmitter, XMEP, 7500 PSI, 1/4"18NPT, 0...10 V, Deutsch, set of 1
- MPN: XMEP7K5PT730
- PPN: TES-XMEP7K5PT730
- UNSPSC: 41111927
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$205.62/ EA
Specifications
Environment
- Product Certifications
- cULus || CE || E2
- Ambient Air Temperature For Storage
- -50-100 °C
- Shock Resistance
- 50 gn 11 ms EN/IEC 60068-2-27
- Ip Degree Of Protection
- IP65 conforming to EN/IEC 60529 || IP67 conforming to EN/IEC 60529 || IP69K conforming to EN/IEC 60529
Ambient Air Temperature For Operation-40-100 °C
StandardsEN/IEC 61326-2-3 || ISO 14982 || EN 13309 || UL 61010-1 || ECE 10R-5 || ISO 13766
Vibration Resistance12 gn sinus 20-520 Hz) test 4 ISO 16750-3 || 18 gn random 10-2000 Hz) test 4 ISO 16750-3
Specifications
- Pressure Sensor Type
- pressure transmitter
- Analogue Output Function
- 0...10 V, 3-wire
- Controlled Fluid
- fresh water 0-125 °C) || air -40-125 °C) || hydraulic oil -40-125 °C)
- Electrical Connection
- DEUTSCH connector DT04-3P 3 pins
- Electrical Circuit Type
- control circuit
- Type Of Packing
- individual
- Local Display
- without
- Current Consumption
- < 7 mA
Pressure Sensor Size7500 psi
Type Of Output Signalanalogue
Range Of ProductTelemecanique Pressure sensors XM
Quantity Per Setset of 1
Product Or Component Typeelectronic pressure sensors
[Us] Rated Supply Voltage24 V DC SELV 12-36 V)
Pressure Sensor NameXMEP
Fluid Connection Type1/4" - 18 NPT (male)
Complementary
- Accuracy
- 0.1 % of the measuring range
- [Uimp] Rated Impulse Withstand Voltage
- 0.5 kV
- Mechanical Durability
- 10000000 cycles
- Operating Position
- any position
- Measurement Accuracy
- +/- 0.5 % of the measuring range
- Drift Of The Sensitivity
- +/- 0.02 % of measuring range/°K
- Materials In Contact With Fluid
- stainless steel AISI 316L
- Destruction Pressure
- 30000 psi
- Response Time On Output
- <= 2 ms 10...90 % of full scale
Diameter26 mm
Repeat Accuracy+/- 0.5 % of the measuring range
Drift Of The Zero Point+/- 0.02 % of measuring range/°K
Electromagnetic Compatibilityelectrostatic discharge immunity test ISO 10605 criteria A 15 kV air, 15 kV contact || susceptibility to electromagnetic fields ISO 11452-2 criteria A 100 V/m 200…2000 MHz || susceptibility to electromagnetic fields ISO 11452-4 criteria A 100 mA 20…400 MHz || susceptibility to conducted disturbances EN/IEC 61000-4-6 criteria A 30 V 0.15...80 MHz || electrical fast transient/burst immunity test EN/IEC 61000-4-4 criteria A 4 kV || susceptibility to conducted transient disturbances ISO 7637-2 criteria B level 3
Protection Typeload short-circuit || reverse polarity
Maximum Permissible Accidental Pressure18750 psi
Length63.4 mm
Net Weight0.098 kg
Pressure Setting Range0-7500 psi
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1511013EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
