Balluff BSP B010-DV004-A04A1A-S4-Z03 Pressure sensors without display BSP B010-DV004-A04A1A-S4-Z03
- MPN: BSP B010-DV004-A04A1A-S4-Z03
- PPN: BAL-BSP00NW
CAD
$366.59
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

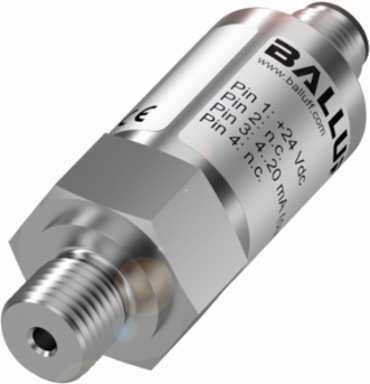

Pressure sensors without display BSP B010-DV004-A04A1A-S4-Z03
Documentation & Downloads
Specifications
Key Specifications
- Measuring range
- 0-10 bar
- Operating voltage Ub
- 14-30 VDC
- Connection
- Connector, M12x1-Male, 4-pin
- Process connection material
- Stainless steel (1.4301)
- Media temperature
- -40-125 °C
- IP rating
- IP67
Accuracy±0.5 % FSO BFSL
Analog outputAnalog, voltage 0…10 V
Process connectionG 1/4" (DIN 3852)
Housing materialStainless steel (1.4301)
Ambient temperature-40-85 °C
Approval/ConformityCE, cULus, WEEE
