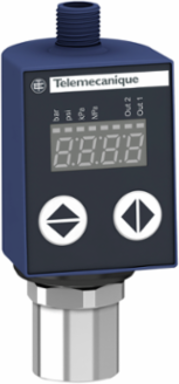

Telemecanique Sensors XMLR010G2P06 Pressure sensor, XMLR, pressure range 10 bar, output 2 PNP, 1/4-18NPT female, M12 connector, 24 VDC, with display

MPN: XMLR010G2P06
PPN: TES-XMLR010G2P06

$535.90

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Pressure sensor, XMLR, pressure range 10 bar, output 2 PNP, 1/4-18NPT female, M12 connector, 24 VDC, with display

Documentation & Downloads

Specifications

Key Specifications

Indivisible sale quantity	1

Commercial status	Commercialised

Complementary

Current consumption	<= 50 mA
Type of output signal	Discrete
Contacts type and composition	2 NO/NC programmable
Voltage drop	2 V
Front material	Polyester
Operating position	Any position, but disposals can falsified the measurement in case of upside down mounting
Response time on output	<= 5 ms for discrete output
Time delay range	0...50 s in steps of 1 second
Local signalling	2 LEDs (yellow) for light ON when switch is actuated
Accuracy	<= 1 % of the measuring range
Repeat accuracy	<= 0.2 % of the measuring range
Drift of the zero point	+/- 0,01 % of measuring range/°C
Electromagnetic compatibility	Susceptibility to electromagnetic fields: 10 V/m 80...2000 MHz conforming to IEC 61000-4-3, immunity to conducted RF disturbances: 10 V 0.15...80 MHz conforming to IEC 61000-4-6, surge immunity test: 1 kV conforming to IEC 61000-4-5, electrical fast transient/burst immunity test: 2 kV conforming to IEC 61000-4-4, electrostatic discharge immunity test: 8 kV air, 4 kV contact conforming to IEC 61000-4-2

Electrical connection	Male connector M12, 4 pins
Discrete output type	Solid state PNP, 2 NO/NC programmable
Scale type	Fixed differential
Materials in contact with fluid	316L stainless steel ceramic fluorocarbon FKM (Viton)
Housing material	316L stainless steel polyacrylamide
Protection type	Overload protection overvoltage protection reverse polarity short-circuit protection
Display type	4 digits 7 segments
Display response time type	Fast 50 ms, normal 200 ms, slow 600 ms
Delay first up	300 ms
Measurement accuracy	<= 0.6 % of the measuring range
Drift of the sensitivity	+/- 0,03 % of measuring range/°C
Display accuracy	<= 1 % of the measuring range

Main

Range of product	Telemecanique Pressure sensors XM
Pressure sensor type	Pressure transmitter
Device short name	XMLR
Fluid connection type	1/4" - 18 NPT (female)

Product or component type	Electronic pressure sensors
Pressure switch type of operation	Pressure switch with 2 switching outputs
Controlled fluid	Fresh water (0-80 °C), air (-20-80 °C), hydraulic oil (-20-80 °C), refrigeration fluid (-20-80 °C)
Rated supply voltage (Us)	24 V DC SELV (voltage limits: 17-33 V)

Environment

Marking	CE
Standards	IEC 61326-2-3 UL 61010-1
Vibration resistance	20 gn (f= 10-2000 Hz) conforming to IEC 60068-2-6

Product certifications	cULus
IP degree of protection	IP65 conforming to IEC 60529, IP67 conforming to IEC 60529
Shock resistance	50 gn conforming to IEC 60068-2-27
