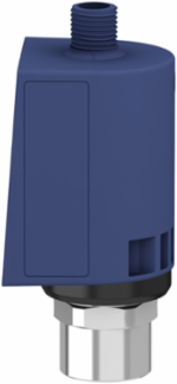

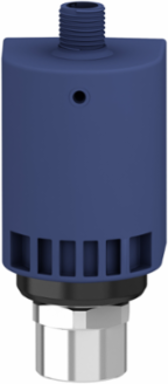

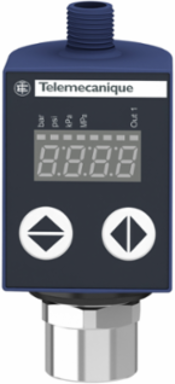

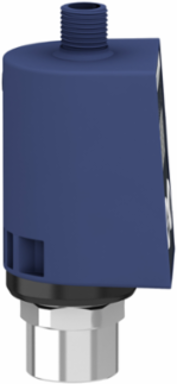

Telemecanique Sensors XMLR2D5G1P25 Electronic pressure sensors, Pressure sensors XM, XMLR 2,5 bar, G 1/4, 24 VDC, 4...20 mA, PNP, M12
- MPN: XMLR2D5G1P25
- PPN: TES-XMLR2D5G1P25
- UNSPSC: 41111927
CAD
$594.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

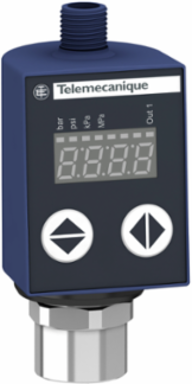

This XMLR electronic pressure sensor has a 4 digit 7-segment display. This electronic pressure transmitter sensor with digital display is designed for accurate pressure measurement and display. It is fixed directly on tubage. It provides high corrosion resistance AISI 316L stainless steel and fluorocarbon resin pressure chamber for maximum longevity. 10 million cycles mechanical durability for minimum required maintenance on your pressurized fluid circuits. It has a supply voltage of 24V DC, a solid state output (PNP) and an analog ouput of 4mA to 20mA. It provides IP65/IP67 degree of protection. It is ideal in moulding and thermoforming presses, injection machines, pneumatic systems and assembly machinery, hydraulic systems of lifting and handling equipment, pumping and fresh water treatment. It complies with EN/IEC 61326-2-3 and UL 61010-1.
Documentation & Downloads
Specifications
Key Specifications
- Pressure Sensor Type
- pressure transmitter
- Pressure Switch Type Of Operation
- pressure transmitter with 1 switching output
- Fluid Connection Type
- G 1/4 (female) DIN 3852-Y
- Controlled Fluid
- fresh water 0-80 °C) || air -20-80 °C) || hydraulic oil -20-80 °C) || refrigeration fluid -20-80 °C)
- [Us] Rated Supply Voltage
- 24 V DC SELV 17-33 V)
- Device Short Name
- XMLR
Range Of ProductTelemecanique Pressure sensors XM
Product Or Component Typeelectronic pressure sensors
Pressure Sensor Size250 kPa || 2.5 bar || 36 psi
Maximum Permissible Accidental Pressure174 psi || 12 bar || 1200 kPa
Destruction Pressure12 bar || 174 psi || 1200 kPa
Complementary
- Display Accuracy
- <= 1 % of the measuring range
- Height
- 93 mm
- Linearity Error
- <= 0.5 % of the measuring range
- Display Response Time Type
- fast 50 ms || normal 200 ms || slow 600 ms
- Repeat Accuracy
- <= 0.2 % of the measuring range
- Time Delay Range
- 0...50 s in steps of 1 second
- Maximum Switching Current
- 250 mA
- Operating Position
- any position, but disposals can falsified the measurement in case of upside down mounting
- Net Weight
- 0.19 kg
- Current Consumption
- <= 50 mA
- Maximum Delay First Up
- 300 ms
- Scale Type
- fixed differential
- Mechanical Durability
- 10000000 cycles
- Measurement Accuracy
- <= 0.6 % of the measuring range
- Adjustable Range Of Switching Point On Rising Pressure
- 20-250 kPa || 2.9-36.2 psi || 0.2-2.5 bar
- Width
- 41 mm
- Front Material
- polyester
- Hysteresis
- <= 0.2 % of the measuring range
- Response Time On Output
- <= 10 ms analog output || <= 5 ms discrete output
Electrical Connectionmale connector M12, 4 pins
Accuracy<= 1 % of the measuring range
Type Of Output Signalanalogue + discrete
Maximum Voltage Drop2 V
Drift Of The Zero Point+/- 0.1 % of measuring range/°C
Electromagnetic Compatibilitysusceptibility to electromagnetic fields 10 V/m 80...2000 MHz EN/IEC 61000-4-3 || immunity to conducted RF disturbances 10 V 0.15...80 MHz EN/IEC 61000-4-6 || surge immunity test 1 kV EN/IEC 61000-4-5 || electrical fast transient/burst immunity test 2 kV EN/IEC 61000-4-4 || electrostatic discharge immunity test 8 kV air, 4 kV contact EN/IEC 61000-4-2
Adjustable Range Of Switching Point On Falling Pressure13-242 kPa || 0.13-2.42 bar || 1.81-35.2 psi
Materials In Contact With Fluidceramic || fluorocarbon FKM (Viton) || 316L stainless steel
Minimum Differential Travel0.08 bar || 1.1 psi || 8 kPa
Contacts Type And CompositionNO/NC programmable
Analogue Output Function4...20 mA
Local Signallinglight ON when switch is actuated 1 LED yellow)
Housing Materialpolyacrylamide || 316L stainless steel
Protection Typeshort-circuit protection || overvoltage protection || reverse polarity || overload protection
Drift Of The Sensitivity+/- 0.03 % of measuring range/°C
Display Type4 digits 7 segments
[Uimp] Rated Impulse Withstand Voltage0.5 kV DC
Depth42 mm
Discrete Output Typesolid state PNP, NO/NC programmable
Environment
- Product Certifications
- cULus || EAC
- Standards
- EN/IEC 61326-2-3 || UL 61010-1
- Marking
- CE
- Ip Degree Of Protection
- IP65 EN/IEC 60529 || IP67 EN/IEC 60529
Ambient Air Temperature For Operation-20-80 °C
Shock Resistance50 gn EN/IEC 60068-2-27
Vibration Resistance20 gn 10-2000 Hz)EN/IEC 60068-2-6
Ambient Air Temperature For Storage-40-80 °C
Offer Sustainability
- Rohs Exemption Information
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Reach Free Of SvhcYes
