Electronic pressure sensors, Pressure sensors XM, XMLR 40 bar, 1/4" 18 NPT, 24 VDC, 4...20 mA, PNP, M12
Telemecanique Sensors

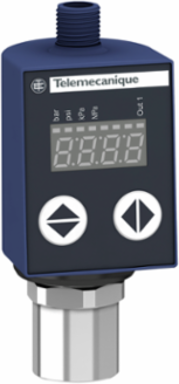

Telemecanique Sensors XMLR040G1P26 Electronic pressure sensors, Pressure sensors XM, XMLR 40 bar, 1/4" 18 NPT, 24 VDC, 4...20 mA, PNP, M12

  • MPN: XMLR040G1P26
  • PPN: TES-XMLR040G1P26
  • UNSPSC: 39122210

CAD

$594.13

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

This XMLR Pressure Switch is a part of the OsiSense XM product range of pressure transmitters and switches. Its four digit display and push buttons for scrolling and selection provide a user friendly control. The compact-sized, rotating body and flip over display function make mounting easy and flexible. This pressure switch controls or regulates pressure levels in air, fresh water, hydraulic oils, and refrigeration fluids. It is used for industrial equipment such as water pumps, compressors, molding presses, injection molders, grinding machines, and machining centers. The range of this transmitter is 0psi to 580psi and provides a programmable normally open or normally closed discrete PNP output and a 4mA to 20mA analog output. The transmitter accepts 24VDC power. The transmitter has a ceramic pressure measuring cell and uses an M12 4-pin male connector and a 1/4in NPT female fluid connection. It is compliant with CE, EAC, UL, and CULus, and IEC standards and IP65 and IP67 rated. It is suitable for monitoring air, fresh water, hydraulic oils and refrigeration fluids. This product is certified by CE, CULus and EAC. It meets EN/IEC 61326-2-3 and UL 61010-1 standards. One of the most comprehensive catalogues of industrial and power pressure sensors on the market. The line of XM Pressure Sensors and Switches (formerly known as OsiSense) combine the latest pressure sensing technology with adaptability to virtually any configuration.

Documentation & Downloads

Specifications

Key Specifications

Pressure Sensor Type
pressure transmitter
Pressure Switch Type Of Operation
pressure transmitter with 1 switching output
Fluid Connection Type
1/4" - 18 NPT (female)
Controlled Fluid
fresh water 0-80 °C) || air -20-80 °C) || hydraulic oil -20-80 °C) || refrigeration fluid -20-80 °C)
[Us] Rated Supply Voltage
24 V DC SELV 17-33 V)
Device Short Name
XMLR
Range Of ProductTelemecanique Pressure sensors XM
Product Or Component Typeelectronic pressure sensors
Pressure Sensor Size40 bar || 580 psi
Maximum Permissible Accidental Pressure150 bar || 2175 psi || 15 MPa
Destruction Pressure2175 psi || 15 MPa || 150 bar

Complementary

Display Accuracy
<= 1 % of the measuring range
Height
100 mm
Linearity Error
<= 0.5 % of the measuring range
Display Response Time Type
fast 50 ms || normal 200 ms || slow 600 ms
Repeat Accuracy
<= 0.2 % of the measuring range
Time Delay Range
0...50 s in steps of 1 second
Maximum Switching Current
250 mA
Operating Position
any position, but disposals can falsified the measurement in case of upside down mounting
Net Weight
0.212 kg
Current Consumption
<= 50 mA
Maximum Delay First Up
300 ms
Scale Type
fixed differential
Mechanical Durability
10000000 cycles
Measurement Accuracy
<= 0.6 % of the measuring range
Adjustable Range Of Switching Point On Rising Pressure
46.4-580 psi || 0.32-4 MPa || 3.2-40 bar
Width
41 mm
Front Material
polyester
Hysteresis
<= 0.2 % of the measuring range
Response Time On Output
<= 10 ms analog output || <= 5 ms discrete output
Electrical Connectionmale connector M12, 4 pins
Accuracy<= 1 % of the measuring range
Type Of Output Signalanalogue + discrete
Maximum Voltage Drop2 V
Drift Of The Zero Point+/- 0.1 % of measuring range/°C
Electromagnetic Compatibilitysusceptibility to electromagnetic fields 10 V/m 80...2000 MHz EN/IEC 61000-4-3 || immunity to conducted RF disturbances 10 V 0.15...80 MHz EN/IEC 61000-4-6 || surge immunity test 1 kV EN/IEC 61000-4-5 || electrical fast transient/burst immunity test 2 kV EN/IEC 61000-4-4 || electrostatic discharge immunity test 8 kV air, 4 kV contact EN/IEC 61000-4-2
Adjustable Range Of Switching Point On Falling Pressure29-563 psi || 2-38.8 bar || 0.2-3.88 MPa
Materials In Contact With Fluidceramic || fluorocarbon FKM (Viton) || 316L stainless steel
Minimum Differential Travel17.4 psi || 1.2 bar || 120 kPa
Contacts Type And CompositionNO/NC programmable
Analogue Output Function4...20 mA
Local Signallingfor light ON when switch is actuated 1 LED (yellow)
Housing Material316L stainless steel || polyacrylamide
Protection Typeovervoltage protection || overload protection || short-circuit protection || reverse polarity
Drift Of The Sensitivity+/- 0.03 % of measuring range/°C
Display Type4 digits 7 segments
[Uimp] Rated Impulse Withstand Voltage0.5 kV DC
Depth42 mm
Discrete Output Typesolid state PNP, NO/NC programmable

Offer Sustainability

Rohs Exemption Information
Yes
Reach Regulation
Free of Substances of Very High Concern above the threshold
Reach Free Of Svhc
Yes
Mercury FreeYes
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

Environment

Product Certifications
cULus || EAC
Standards
EN/IEC 61326-2-3 || UL 61010-1
Marking
CE
Ip Degree Of Protection
IP65 conforming to EN/IEC 60529 || IP67 conforming to EN/IEC 60529
Ambient Air Temperature For Operation-20-80 °C
Shock Resistance50 gn EN/IEC 60068-2-27
Vibration Resistance20 gn 10-2000 Hz)EN/IEC 60068-2-6
Ambient Air Temperature For Storage-40-80 °C
