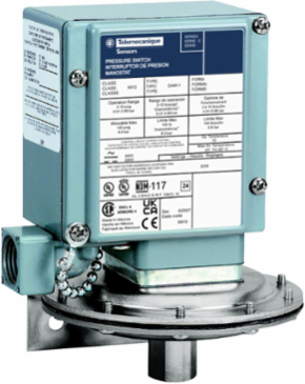

Telemecanique Sensors 9012GAW1G21 Pressure switch 9012G, adjustable scale, 2 thresholds, 0.2 to 10 PSIG
- MPN: 9012GAW1G21
- UPC: 785901170945
- PPN: TES-9012GAW1G21
- UNSPSC: 39122210
CAD
$637.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Pressure switch 9012G, adjustable scale, 2 thresholds, 0.2 to 10 PSIG
Documentation & Downloads
Specifications
Key Specifications
- Pressure Sensor Type
- electromechanical pressure switch
- Controlled Fluid
- hydraulic oil -40-250 °F) || non-corrosive liquids || air || non-corrosive gas
- Scale Type
- adjustable differential
- Pressure Switch Type Of Operation
- regulation between 2 thresholds
- Local Display
- without
- Fluid Connection Type
- 0.25 inch 18 NPTF UL 508
Pressure Sensor Size10 psi
Range Of Product9012G
Maximum Pressure100 psi
Contacts Type And CompositionNC-NO, SPDT-DB, Form Z, snap action, silver nickel contacts
Pressure Sensor Name9012G
Complementary
- Repeat Accuracy
- 4 %
- Pressure Actuator
- diaphragm nitrile (Buna-N)
- Terminal Block Type
- 4 screw terminals
- Setting
- internal
- [In] Rated Current
- 2.75 A 24 V DC
- Cable Entry
- 0.5 inch NPT conduit entrance
- Electrical Connection
- screw-clamp terminals, AWG 22...AWG 12
- Enclosure Material
- die cast aluminium alloy 380
- Width
- 5.05 in
- Materials In Contact With Fluid
- 3M Scotch-Grip 847 rubber and gasket adhesive || zinc plated steel
- Local Signalling
- 1 LED clear) 24 V DC
Height6.24 in
Maximum Operating Rate120 cyc/mn
Short-Circuit Protection10 A cartridge overload and short-circuit protection gL
Mechanical Durability5000000 cycles
Range On Decreasing Pressure0.2-10 psi
Operating Positionany position
Electrical Circuit Typecontrol circuit
Approx Adjustable Differential At Mid Range0.6-2 psi +/- 2.5 % full scale
Depth4.56 in
Net Weight3 lb(US)
Environment
- Product Certifications
- CE || UL listed file E12158 CCN NKPZ and CCN NTHT
- Standards
- CE || CSA C22.2 No 14 || UL 508
- Shock Resistance
- 50 gn IEC 58-2-27
Ambient Air Temperature For Operation-10-185 °F
Nema Degree Of ProtectionNEMA 4/4X/13 UL 50
Vibration Resistance2 gn 40-150 Hz)IEC 68-2-6
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Circularity Profile
- ENVEOLI111210EN
- Eu Rohs Directive
- Not applicable, out of EU RoHS legal scope
Environmental DisclosureENVPEP111211EN
Reach RegulationReference contains Substances of Very High Concern above the threshold
