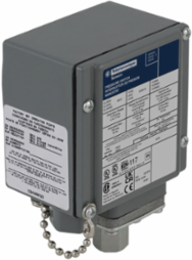

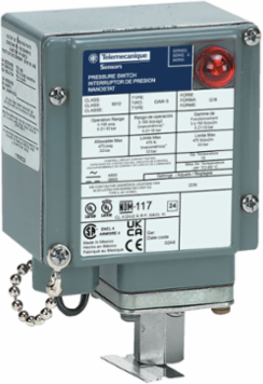

Telemecanique Sensors 9012GAW5G22K Pressure switch 9012G, adjustable scale, 2 thresholds, 3.0 to 150 PSIG
- MPN: 9012GAW5G22K
- UPC: 785901175278
- PPN: TES-9012GAW5G22K
CAD
$618.50
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Pressure switch 9012G, adjustable scale, 2 thresholds, 3.0 to 150 PSIG
Documentation & Downloads
Specifications
Key Specifications
| Pressure Sensor Type | electromechanical pressure switch |
|---|---|
| Controlled Fluid | hydraulic oil -40-250 °F) || non-corrosive liquids || air || non-corrosive gas |
| Scale Type | adjustable differential |
| Pressure Switch Type Of Operation | regulation between 2 thresholds |
| Local Display | with range scale window |
| Fluid Connection Type | 0.25 inch 18 NPTF UL 508 |
| Pressure Sensor Size | 150 psi |
|---|---|
| Range Of Product | 9012G |
| Maximum Pressure | 475 psi |
| Contacts Type And Composition | NC-NO, SPDT-DB, Form Z, snap action, silver nickel contacts |
| Pressure Sensor Name | 9012G |
Complementary
| Repeat Accuracy | 4 % |
|---|---|
| Height | 6.6 in |
| Maximum Operating Rate | 120 cyc/mn |
| Short-Circuit Protection | 10 A cartridge overload and short-circuit protection gL |
| Mechanical Durability | 5000000 cycles |
| Range On Decreasing Pressure | 3-150 psi |
| Operating Position | any position |
| Electrical Circuit Type | control circuit |
| Approx Adjustable Differential At Mid Range | 6-30 psi +/- 2.5 % full scale |
| Depth | 3.11 in |
| Net Weight | 3 lb(US) |
| Control Type | with adjustment knob |
| Terminal Identifier | (3)gnd || (2-4)NO |
|---|---|
| Pressure Actuator | diaphragm nitrile (Buna-N) |
| Terminal Block Type | 4 screw terminals |
| Setting | external |
| [In] Rated Current | 2.75 A 24 V DC |
| Cable Entry | 0.5 inch NPT conduit entrance |
| Electrical Connection | screw-clamp terminals, AWG 22...AWG 12 |
| Enclosure Material | die cast aluminium alloy 380 |
| Width | 3.5 in |
| Materials In Contact With Fluid | nitrile (Buna-N) |
| Local Signalling | 1 LED red) 24 V DC |
Environment
| Product Certifications | CE || UL listed file E12158 CCN NKPZ and CCN NTHT |
|---|---|
| Standards | UL 508 || CSA C22.2 No 14 |
| Shock Resistance | 50 gn IEC 58-2-27 |
| Ambient Air Temperature For Operation | -10-185 °F |
|---|---|
| Nema Degree Of Protection | NEMA 4/4X/13 UL 50 |
| Vibration Resistance | 2 gn 40-150 Hz)IEC 68-2-6 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Circularity Profile | ENVEOLI111210EN |
|---|---|
| Eu Rohs Directive | Not applicable, out of EU RoHS legal scope |
| Environmental Disclosure | ENVPEP111211EN |
|---|---|
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
