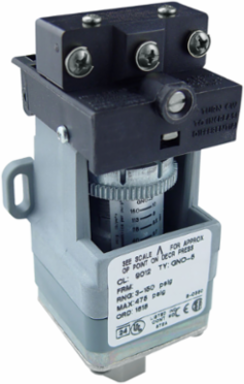

Telemecanique Sensors 9012GRO4 Pressure switch 9012G, fixed scale, 1 threshold, 1.5 to 75 PSIG
- MPN: 9012GRO4
- UPC: 785901543190
- PPN: TES-9012GRO4
- UNSPSC: 39122210
CAD
$356.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Pressure switch 9012G, fixed scale, 1 threshold, 1.5 to 75 PSIG
Documentation & Downloads
Specifications
Key Specifications
- Pressure Sensor Type
- electromechanical pressure switch
- Controlled Fluid
- hydraulic oil -40-250 °F) || non-corrosive liquids || air || non-corrosive gas
- Scale Type
- fixed differential
- Pressure Switch Type Of Operation
- detection of 1 single threshold
- Local Display
- without
- Fluid Connection Type
- 0.25 inch 18 NPTF UL 508
Pressure Sensor Size75 psi
Range Of Product9012G
Maximum Pressure240 psi
Contacts Type And CompositionNC-NO, SPDT, Form C, snap action, silver nickel contacts
Pressure Sensor Name9012G
Complementary
- Repeat Accuracy
- 4 %
- Pressure Actuator
- diaphragm nitrile (Buna-N)
- Terminal Block Type
- 4 screw terminals
- Approx Fix Differential At Mid Range
- 2.2 psi +/- 2.5 % full scale
- Mechanical Durability
- 5000000 cycles
- Range On Decreasing Pressure
- 1.5-75 psi
- Operating Position
- any position
- Electrical Connection
- screw-clamp terminals, AWG 22...AWG 12
- Depth
- 2.46 in
- Net Weight
- 2 lb(US)
Height5.41 in
Maximum Operating Rate120 cyc/mn
Short-Circuit Protection10 A cartridge overload and short-circuit protection gL
Settinginternal
Line Rated Current3 A 240 V AC A600 NEMA rating designation || 0.22 A 125 V DC A600 NEMA rating designation || 0.27 A 250 V DC R300 NEMA rating designation || 0.22 A 125 V DC R300 NEMA rating designation
Cable Entry0.5 inch NPT conduit entrance
Electrical Circuit Typecontrol circuit
Width2.06 in
Materials In Contact With Fluidnitrile (Buna-N)
Local Signallingwithout
Environment
- Product Certifications
- CSA LR26817 class 3218 02 || CE || CSA LR25490 class 3211 03
- Standards
- CE || UL 508
- Shock Resistance
- 50 gn IEC 58-2-27
Ambient Air Temperature For Operation-10-185 °F
Nema Degree Of Protectionno enclosure rating (open device) UL 508
Vibration Resistance2 gn 40-150 Hz)IEC 68-2-6
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Circularity Profile
- ENVEOLI111210EN
- Eu Rohs Directive
- Not applicable, out of EU RoHS legal scope
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Environmental DisclosureENVPEP111211EN
Reach RegulationReference contains Substances of Very High Concern above the threshold
