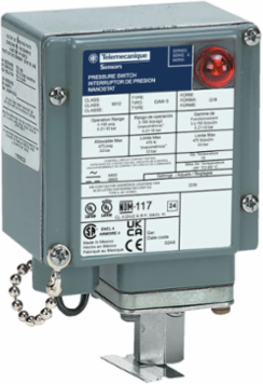

Telemecanique Sensors 9012GDW6G18 Pressure switch 9012G, fixed scale, 1 threshold, 5.0 to 250 PSIG
- MPN: 9012GDW6G18
- UPC: 785901408383
- PPN: TES-9012GDW6G18
CAD
$501.30
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Pressure switch 9012G, fixed scale, 1 threshold, 5.0 to 250 PSIG
Documentation & Downloads
Specifications
Key Specifications
- Pressure Sensor Type
- electromechanical pressure switch
- Controlled Fluid
- hydraulic oil -40-250 °F) || non-corrosive liquids || air || non-corrosive gas
- Scale Type
- fixed
- Pressure Switch Type Of Operation
- detection of 1 single threshold
- Local Display
- without
- Fluid Connection Type
- 0.25 inch 18 NPTF UL 508
Pressure Sensor Size250 psi
Range Of Product9012G
Maximum Pressure750 psi
Contacts Type And CompositionNC-NO, SPDT-DB, Form Z, snap action, silver nickel contacts
Pressure Sensor Name9012G
Complementary
- Repeat Accuracy
- 4 %
- Pressure Actuator
- diaphragm nitrile (Buna-N)
- Terminal Block Type
- 4 screw terminals
- Approx Fix Differential At Mid Range
- 10 psi +/- 2.5 % full scale
- Mechanical Durability
- 5000000 cycles
- Range On Decreasing Pressure
- 5-250 psi
- Operating Position
- any position
- Electrical Connection
- screw-clamp terminals, AWG 22...AWG 12
- Width
- 3.5 in
- Materials In Contact With Fluid
- nitrile (Buna-N) || zinc plated steel
- Local Signalling
- indicator light module120 V AC/DC 105...125 V)
Height5.55 in
Maximum Operating Rate120 cyc/mn
Short-Circuit Protection10 A cartridge overload and short-circuit protection gL
Settinginternal
[In] Rated Current6 A 120 V AC || 0.22 A 125 V DC
Cable Entry0.5 inch NPT conduit entrance
Electrical Circuit Typecontrol circuit
Enclosure Materialdie cast aluminium alloy 380
Depth3.11 in
Net Weight3 lb(US)
Environment
- Product Certifications
- CSA LR25490 class 3211 03 || UL listed file E12158 CCN NKPZ and CCN NTHT
- Standards
- CSA C22.2 No 14 || CE
- Shock Resistance
- 50 gn IEC 58-2-27
Ambient Air Temperature For Operation-10-185 °F
Nema Degree Of ProtectionNEMA 4/4X/13 UL 50
Vibration Resistance2 gn 40-150 Hz)IEC 68-2-6
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Circularity Profile
- ENVEOLI111210EN
- Eu Rohs Directive
- Not applicable, out of EU RoHS legal scope
Environmental DisclosureENVPEP111211EN
Reach RegulationReference contains Substances of Very High Concern above the threshold
