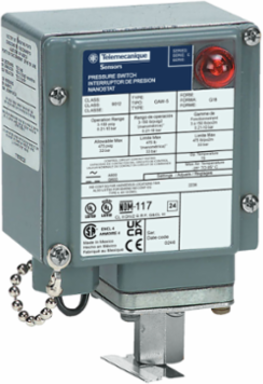

Telemecanique Sensors 9012GAW5G18 Pressure switch 9012G, adjustable scale, 2 thresholds, 3.0 to 150 PSIG
- MPN: 9012GAW5G18
- UPC: 785901047667
- PPN: TES-9012GAW5G18
CAD
$547.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Pressure switch 9012G, adjustable scale, 2 thresholds, 3.0 to 150 PSIG
Documentation & Downloads
Specifications
Key Specifications
- Pressure Sensor Type
- electromechanical pressure switch
- Controlled Fluid
- hydraulic oil -40-250 °F) || non-corrosive liquids || air || non-corrosive gas
- Scale Type
- adjustable differential
- Pressure Switch Type Of Operation
- regulation between 2 thresholds
- Local Display
- without
- Fluid Connection Type
- 0.25 inch 18 NPTF UL 508
Pressure Sensor Size150 psi
Range Of Product9012G
Maximum Pressure475 psi
Contacts Type And CompositionNC-NO, SPDT-DB, Form Z, snap action, silver nickel contacts
Pressure Sensor Name9012G
Complementary
- Repeat Accuracy
- 4 %
- Pressure Actuator
- diaphragm nitrile (Buna-N)
- Terminal Block Type
- 4 screw terminals
- Setting
- internal
- Line Rated Current
- 6 A 120 V AC || 0.22 A 125 V DC
- Cable Entry
- 0.5 inch NPT conduit entrance
- Electrical Circuit Type
- control circuit
- Enclosure Material
- die cast aluminium alloy 380
- Width
- 3.5 in
- Materials In Contact With Fluid
- nitrile (Buna-N)
- Local Signalling
- 1 neon red) 120 V AC/DC 105...125 V)
Height5.55 in
Maximum Operating Rate120 cyc/mn
Short-Circuit Protection10 A cartridge overload and short-circuit protection gL
Mechanical Durability5000000 cycles
Range On Decreasing Pressure3-150 psi
Operating Positionany position
Electrical Connectionscrew-clamp terminals, AWG 22...AWG 12
Approx Adjustable Differential At Mid Range6-30 psi +/- 2.5 % full scale
Depth3.11 in
Net Weight3 lb(US)
Environment
- Product Certifications
- CSA LR25490 class 3211 03 || UL listed file E12158 CCN NKPZ and CCN NTHT
- Standards
- UL 508 || CSA C22.2 No 14
- Shock Resistance
- 50 gn IEC 58-2-27
Ambient Air Temperature For Operation-10-185 °F
Nema Degree Of ProtectionNEMA 4/4X/13 UL 50
Vibration Resistance2 gn 40-150 Hz)IEC 68-2-6
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Circularity Profile
- ENVEOLI111210EN
- Eu Rohs Directive
- Not applicable, out of EU RoHS legal scope
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Environmental DisclosureENVPEP111211EN
Reach RegulationReference contains Substances of Very High Concern above the threshold
