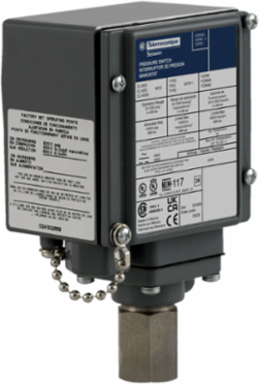

Telemecanique Sensors 9012GFW22 Pressure switch 9012G, fixed scale, 1 threshold, 90 to 2900 PSIG PSIG

This product is part of the Nema Pressure Switches range, an offer of electromechanical pressure switches. This electromechanical pressure switch has 2 NC and 2 NO, DPDT-DB (double pole double throw, double break), form ZZ, snap action contacts. It has a fixed differential scale for internal settings between 90psig to 2900psig. The pressure switch with an approximate fixed differential at mid range of 1172.11kPa and a maximum pressure of 15000psi. It is furnished with screw clamp terminals for electrical connection and 1/4-18 NPTF for fluid connection. This switch has a piston actuator which can be operated from any position and detection of single threshold. It is a NEMA 4/4X/13 rated product. The enclosure is made of die-cast aluminum alloy 380. Its dimensions are 88.9mm (width) x 66.8mm (depth) x 140.97mm (height). It weighs 1.36kg. It is suitable for pressure controlling or monitoring of water pumps, compressors, agricultural/irrigation water systems, molding presses and injection molders. This product is certified by CE, CSA and UL. It meets CSA C22.2 No 14 and UL 508 standards. A complete line of electromechanical switches to monitor and control pressure conditions for industrial and end-user applications. The Square D brand water pressure switch has expanded to industry leading Pressure Sensors and Switches.
