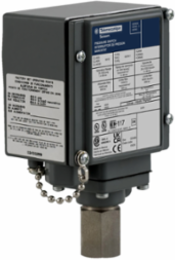

Telemecanique Sensors 9012GFW2 Pressure switch, 9012G, pressure range 90 to 2900 psig, fixed scale, 1 threshold, setting Internal, terminal block type 4 screw terminals

MPN: 9012GFW2
UPC: 785901024910
PPN: TES-9012GFW2

$888.08

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Pressure switch, 9012G, pressure range 90 to 2900 psig, fixed scale, 1 threshold, setting Internal, terminal block type 4 screw terminals

Documentation & Downloads

Specifications

Key Specifications

Indivisible sale quantity	1

Commercial status	Commercialised

Complementary

Cable entry	0.5 inch NPT conduit entrance
Electrical connection	Screw-clamp terminals, AWG 22...AWG 12
Local signalling	Without:
Enclosure material	Die cast aluminium alloy 380
Operating position	Any position
Operating rate	120 cyc/mn

Terminal block type	4 screw terminals
Electrical circuit type	Control circuit
Setting	Internal
Pressure actuator	Piston
Materials in contact with fluid	Teflon zinc plated steel

Main

Pressure sensor type	Electromechanical pressure switch
Contacts type and composition	NC-NO, 2 SPDT-DB, Form Z, snap action, silver nickel contacts
Fluid connection type	0.25 inch 18 NPTF conforming to UL 508
Scale type	Fixed

Maximum pressure	15000 psi
Controlled fluid	Hydraulic oil (-15-250 °F), non-corrosive liquids (-15-250 °F), air (-15-250 °F), non-corrosive gas (-15-250 °F)
Pressure switch type of operation	Detection of 1 single threshold
Local display	Without

Environment

Vibration resistance	2 gn (f= 40-150 Hz) conforming to IEC 68-2-6
Standards	CE CSA C22.2 No 14 UL 508
NEMA degree of protection	NEMA 4/4X/13 conforming to UL 50
