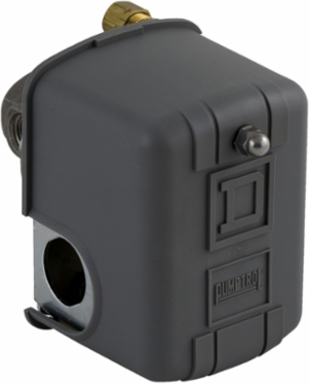

Telemecanique Sensors 9013FHG59J59XZ22 Square D Pumptrol, air compressor switch 9013FH, fixed differential, Off at 175 PSI, high hp
- MPN: 9013FHG59J59XZ22
- UPC: 785901362234
- PPN: TES-9013FHG59J59XZ22
- UNSPSC: 39122210
CAD
$74.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Square D Pumptrol, air compressor switch 9013FH, fixed differential, Off at 175 PSI, high hp
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Square D Pumptrol
- Product Specific Application
- control small electrically driven air compressors
- Electrical Circuit Type
- power circuit
- Type Of Packing
- individual
Value Of Settingoff at 175 psi
Quantity Per Set1
Pressure Sensor Size200 psi
Pressure Sensor Name9013FH
Complementary
- Cable Entry Number
- 2 0.88 in cable entries with 0.84 in across flats UL 508
- Pressure Sensor Type
- electromechanical pressure switch
- Materials In Contact With Fluid
- zinc plated steel or equivalent flange || nitrile (Buna-N) or equivalent rubber diaphragm
- Terminal Block Type
- 4 terminals
- [Ui] Rated Insulation Voltage
- 575 V UL 508
- Short-Circuit Protection
- 20 A cartridge fuse gG
- Setting
- internal
- Scale Type
- fixed differential
- Material
- polypropylene Cover || noryl thermoplastic resin or equivalent Cover
- Factory Modification
- black cover || 2-way pressure release valve
- Maximum Operating Rate
- 10 cyc/mn
- Width
- 2.78 in
- Motor Power Kw
- 1.5 kW 2 hp)115 V AC, 1 phase || 2.2 kW 3 hp)115 V AC, 3 phase || 2.2 kW 3 hp)230 V AC, 1 phase || 3.7 kW 5 hp)230 V AC, 3 phase
- Destruction Pressure
- 220 psi
- Net Weight
- 1 lb(US)
- Fluid Connection Type
- 0.25 inch NPT external UL 508
Electrical Connectionscrew-clamp terminals 10 AWG || screw-clamp terminals 5.261 mm²
Pressure Actuatordiaphragm
Height3.92 in
Terminals Description Iso N°1L1-T1 || L2-T2
Controlled Fluidair -22-257 °F)
Repeat Accuracy+/- 3 %
Approximate Fixed Differential40 psi
Mechanical Durability300000 cycles
Pressure Switch Type Of Operationregulation between 2 thresholds
Operating Positionany position
Contacts Type And Composition2 NC, snap action, DPST-DB, Form YY
Depth3.76 in
Adjustable Range On Rising Pressure100-200 psi
Local Displaywithout
Electrical Durability100000 cycles 10 cyc/mn
Environment
- Product Certifications
- UL listed file E12158 || CSA file LR25490
- Ambient Air Temperature For Storage
- -33-257 °F
- Nema Degree Of Protection
- NEMA 1 UL 50
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
Ambient Air Temperature For Operation-33-257 °F
StandardsUL 508 || CE
Protective Treatmentnone
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Circularity Profile
- ENVEOLI111210EN
- Eu Rohs Directive
- Not applicable, out of EU RoHS legal scope
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Environmental DisclosureENVPEP111211EN
Reach RegulationReference contains Substances of Very High Concern above the threshold
