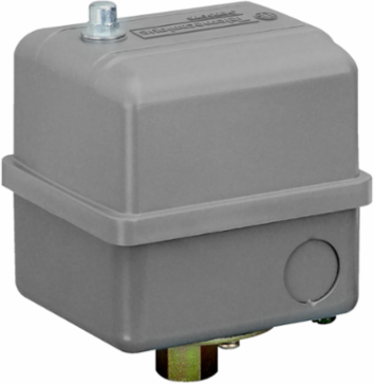

Telemecanique Sensors 9013GSG2J99 Square D Pumptrol, pump or compressor switch 9013GS, adjustable diff., factory setting

MPN: 9013GSG2J99
UPC: 785901053699
PPN: TES-9013GSG2J99
UNSPSC: 39122210

$142.45

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Square D Pumptrol, pump or compressor switch 9013GS, adjustable diff., factory setting

Documentation & Downloads

Specifications

Key Specifications

Range Of Product	Square D Pumptrol
Pressure Sensor Name	9013GS
Product Specific Application	control electrically driven water pumps and air compressors
Electrical Circuit Type	power circuit

Type Of Packing	individual
Value Of Setting	specify pressure settings
Quantity Per Set	1
Pressure Sensor Size	80 psi 5-60 psi)

Complementary

Pressure Sensor Type	electromechanical pressure switch
Materials In Contact With Fluid	zinc plated steel or equivalent flange \|\| nitrile (Buna-N) or equivalent rubber diaphragm
Approximate Adjustable Differential	15-30 psi
Terminals Description Iso N°1	L2-T2 \|\| L1-T1
Repeat Accuracy	+/- 3 %
Maximum Operating Rate	10 cyc/mn
Adjustable Range On Rising Pressure	20-80 psi
Net Weight	2.25 lb(US)
Fluid Connection Type	0.25 inch NPSF internal UL 508
Electrical Connection	screw-clamp terminals 10 AWG \|\| screw-clamp terminals 5.261 mm²
Controlled Fluid	air -22-257 °F) \|\| fresh water -22-257 °F)
Scale Type	adjustable differential
Material	polypropylene Cover \|\| noryl thermoplastic resin or equivalent Cover
Width	3.44 in
Motor Power Kw	1.5 kW 2 hp)115 V AC, 1 phase \|\| 2.2 kW 3 hp)115 V AC, 3 phase \|\| 2.2 kW 3 hp)230 V AC, 1 phase \|\| 0.75 kW 1 hp)115 V DC \|\| 0.75 kW 1 hp)230 V DC \|\| 3.75 kW 5 hp)230 V AC, 3 phase \|\| 3.7 kW 5 hp)460 V AC, 1 phase \|\| 3.7 kW 5 hp)460 V AC, 3 phase \|\| 3.7 kW 5 hp)575 V AC, 1 phase \|\| 3.7 kW 5 hp)575 V AC, 3 phase

Pressure Actuator	diaphragm
Height	5.4 in
Terminal Block Type	4 terminals
Short-Circuit Protection	20 A cartridge fuse gG
Pressure Switch Type Of Operation	regulation between 2 thresholds
Contacts Type And Composition	2 NC, snap action, DPST-DB, Form YY
Local Display	without
Electrical Durability	100000 cycles 10 cyc/mn
Cable Entry Number	3 knock-outs for 1/2" conduit UL 508
[Ui] Rated Insulation Voltage	575 V UL 508
Setting	internal
Mechanical Durability	300000 cycles
Operating Position	any position
Depth	3.88 in
Destruction Pressure	300 psi

Environment

Product Certifications	CSA file LR25490 \|\| UL listed file E12158
Standards	NSF ANSI 372 \|\| CE \|\| UL 508
Ambient Air Temperature For Storage	-33-257 °F
Protective Treatment	none

Ambient Air Temperature For Operation	-33-257 °F
Ip Degree Of Protection	IP20 conforming to IEC 60529
Nema Degree Of Protection	NEMA 1 UL 50

Contractual warranty

Warranty	18 months

Offer Sustainability

Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP111211EN
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Circularity Profile	ENVEOLI111210EN

Mercury Free	Yes
Sustainable Offer Status	Green Premium product
California Proposition 65	WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
