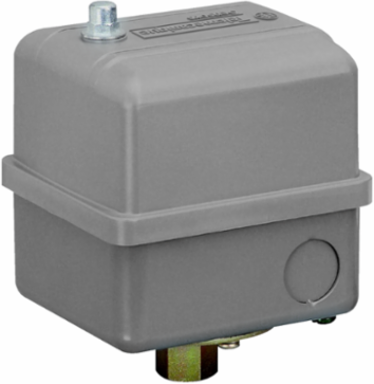

Telemecanique Sensors 9013GHG2J99 Square D Pumptrol, pump or compressor switch 9013GH, adjustable diff., factory setting
- MPN: 9013GHG2J99
- UPC: 785901053156
- PPN: TES-9013GHG2J99
CAD
$142.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Square D Pumptrol, pump or compressor switch 9013GH, adjustable diff., factory setting
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Square D Pumptrol
- Pressure Sensor Name
- 9013GH
- Product Specific Application
- control electrically driven water pumps and air compressors
- Electrical Circuit Type
- power circuit
Type Of Packingindividual
Value Of Settingspecify pressure settings
Quantity Per Set1
Pressure Sensor Size200 psi 40-170 psi)
Complementary
- Pressure Sensor Type
- electromechanical pressure switch
- Materials In Contact With Fluid
- zinc plated steel or equivalent flange || nitrile (Buna-N) or equivalent rubber diaphragm
- Approximate Adjustable Differential
- 20-40 psi
- Terminals Description Iso N°1
- L2-T2 || L1-T1
- Repeat Accuracy
- +/- 3 %
- Maximum Operating Rate
- 10 cyc/mn
- Adjustable Range On Rising Pressure
- 65-200 psi
- Net Weight
- 2.25 lb(US)
- Fluid Connection Type
- 0.25 inch NPSF internal UL 508
- Electrical Connection
- screw-clamp terminals 10 AWG || screw-clamp terminals 5.261 mm²
- [Ui] Rated Insulation Voltage
- 575 V UL 508
- Scale Type
- adjustable differential
- Material
- polypropylene cover || noryl thermoplastic resin or equivalent cover
- Width
- 3.44 in
- Motor Power Kw
- 1.5 kW 2 hp)115 V AC, 1 phase || 2.2 kW 3 hp)115 V AC, 3 phases || 2.2 kW 3 hp)230 V AC, 1 phase || 0.75 kW 1 hp)115 V DC || 0.75 kW 1 hp)230 V DC || 3.75 kW 5 hp)230 V AC, 3 phases || 3.7 kW 5 hp)460 V AC, 1 phase || 3.7 kW 5 hp)460 V AC, 3 phases || 3.7 kW 5 hp)575 V AC, 1 phase || 3.7 kW 5 hp)575 V AC, 3 phases
Pressure Actuatordiaphragm
Height5.4 in
Terminal Block Type4 terminals
Short-Circuit Protection20 A cartridge fuse gG
Pressure Switch Type Of Operationregulation between 2 thresholds
Contacts Type And Composition2 NC, snap action, DPST-DB, Form YY
Local Displaywithout
Electrical Durability100000 cycles 10 cyc/mn
Cable Entry Number3 knock-outs for 1/2" conduit UL 508
Controlled Fluidair -22-257 °F) || fresh water -22-257 °F)
Settinginternal
Mechanical Durability300000 cycles
Operating Positionany position
Depth3.88 in
Destruction Pressure300 psi
Environment
- Product Certifications
- CSA file LR25490 || UL listed file E12158
- Standards
- CE || NSF ANSI 372 || UL 508
- Ambient Air Temperature For Storage
- -33-257 °F
- Protective Treatment
- none
Ambient Air Temperature For Operation-33-257 °F
Ip Degree Of ProtectionIP20 IEC 60529
Nema Degree Of ProtectionNEMA 1 UL 50
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111211EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI111210EN
