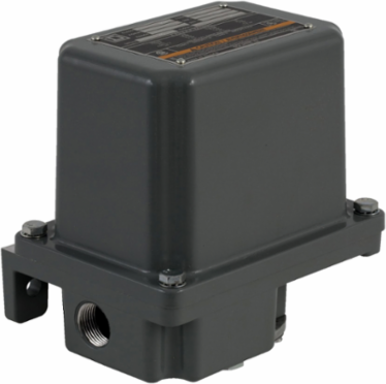

Telemecanique Sensors 9013GHR2J63PX Square D Pumptrol, pump or compressor switch 9013GH, adjustable diff., 145 175 PSI

This product is part of the Nema Pressure Switches range, an offer of pump or compressor switches. This pump or compressor switch has 2 NC, DPST-DB (double pole single throw, double break), form YY, snap action contacts. It has an adjustable differential scale, factory setting value and an approximate adjustable differential of 30psi to 60psi. The pressure switch with a pressure sensor size of 200psi and an adjustable range on rising pressure of 65psi to 200psi. It is furnished with screw clamp terminals for electrical connection and 1/4inch NPSF internal for fluid connection. This water pump switch has a diaphragm actuator which can be operated from any position and regulation of 2 thresholds. It is an IP20 and NEMA 7/9 rated product. The enclosure is made of cast aluminum. Its dimensions are 181.1mm (width) x 136.65mm (depth) x 214.88mm (height). It weighs 1.02kg. It is suitable for pressure controlling or monitoring of water pumps, compressors, agricultural/irrigation water systems, molding presses and injection molders. This product is certified by CSA and UL. It meets CE, NSF ANSI 372 and UL 508 standards. Power pressure switch is rated for the direct control of motors in compressor applications. The Square D brand water pressure switch has expanded to industry leading Pressure Sensors and Switches.
