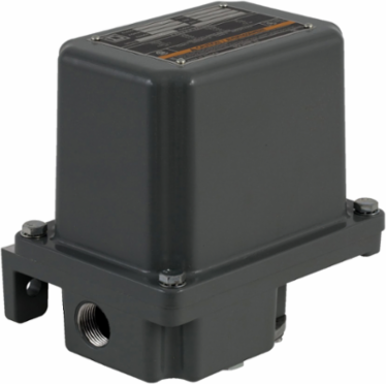

Telemecanique Sensors 9013GSR2J21 Square D Pumptrol, pump or compressor switch 9013GS, adjustable diff., 30 50 PSI

MPN: 9013GSR2J21
UPC: 785901716129
PPN: TES-9013GSR2J21

$742.92

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Square D Pumptrol, pump or compressor switch 9013GS, adjustable diff., 30 50 PSI

Documentation & Downloads

Specifications

Key Specifications

Range Of Product	Square D Pumptrol
Product Specific Application	control electrically driven water pumps and air compressors
Electrical Circuit Type	power circuit
Type Of Packing	individual

Value Of Setting	30...50 psi
Quantity Per Set	1
Pressure Sensor Size	80 psi 5-50 psi)
Pressure Sensor Name	9013GS

Complementary

Cable Entry Number	2 conduit entries for 3/4"-14 NPT UL 508
Pressure Sensor Type	electromechanical pressure switch
Materials In Contact With Fluid	zinc plated steel or equivalent flange \|\| nitrile (Buna-N) or equivalent rubber diaphragm
Approximate Adjustable Differential	20-40 psi
Terminals Description Iso N°1	L2-T2 \|\| L1-T1
Controlled Fluid	air -22-257 °F) \|\| fresh water -22-257 °F)
Repeat Accuracy	+/- 3 %
Scale Type	adjustable differential
Material	cast aluminium enclosure
Operating Position	any position
Contacts Type And Composition	2 NC, snap action, DPST-DB, Form YY
Depth	5.38 in
Adjustable Range On Rising Pressure	20-80 psi
Local Display	without
Electrical Durability	100000 cycles 10 cyc/mn

Electrical Connection	screw-clamp terminals 10 AWG \|\| screw-clamp terminals 5.261 mm²
Pressure Actuator	diaphragm
Height	8.46 in
Terminal Block Type	4 terminals
[Ui] Rated Insulation Voltage	575 V UL 508
Short-Circuit Protection	20 A cartridge fuse gG
Setting	internal
Mechanical Durability	300000 cycles
Pressure Switch Type Of Operation	regulation between 2 thresholds
Maximum Operating Rate	10 cyc/mn
Width	7.13 in
Motor Power Kw	1.5 kW 2 hp)115 V AC, 1 phase \|\| 2.2 kW 3 hp)115 V AC, 3 phases \|\| 2.2 kW 3 hp)230 V AC, 1 phase \|\| 0.75 kW 1 hp)115 V DC \|\| 0.75 kW 1 hp)230 V DC \|\| 3.75 kW 5 hp)230 V AC, 3 phases \|\| 3.7 kW 5 hp)460 V AC, 1 phase \|\| 3.7 kW 5 hp)460 V AC, 3 phases \|\| 3.7 kW 5 hp)575 V AC, 1 phase \|\| 3.7 kW 5 hp)575 V AC, 3 phases
Destruction Pressure	100 psi
Net Weight	2.25 lb(US)
Fluid Connection Type	0.25 inch NPSF internal UL 508

Environment

Product Certifications	UL listed file E12443 \|\| CSA file LR26817
Ambient Air Temperature For Storage	-33-257 °C
Nema Degree Of Protection	NEMA 7 UL 698 \|\| NEMA 9
Ip Degree Of Protection	IP20 IEC 60529

Ambient Air Temperature For Operation	-33-257 °C
Standards	UL 508 \|\| CE \|\| NSF ANSI 372
Protective Treatment	none

Contractual warranty

Warranty	18 months

Offer Sustainability

Circularity Profile	ENVEOLI111210EN
Mercury Free	Yes
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
