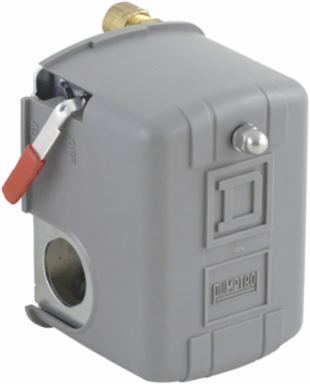

Telemecanique Sensors 9013FSG52J25M4 Square D Pumptrol, water pump switch 9013FS, adjustable diff., 60 80 PSI

MPN: 9013FSG52J25M4
UPC: 785901168676
PPN: TES-9013FSG52J25M4
UNSPSC: 39122210

$52.30

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Square D Pumptrol, water pump switch 9013FS, adjustable diff., 60 80 PSI

Documentation & Downloads

Specifications

Key Specifications

Range Of Product	Square D Pumptrol
Product Specific Application	control electrically driven water pumps
Electrical Circuit Type	power circuit
Type Of Packing	individual

Value Of Setting	60...80 psi
Quantity Per Set	1
Pressure Sensor Size	80 psi 5-60 psi)
Pressure Sensor Name	9013FS

Complementary

Cable Entry Number	2 0.88 in cable entries with 0.84 in across flats UL 508
Pressure Sensor Type	electromechanical pressure switch
Materials In Contact With Fluid	zinc plated steel or equivalent flange \|\| nitrile (Buna-N) or equivalent rubber diaphragm
Approximate Adjustable Differential	20-30 psi
Terminals Description Iso N°1	L2-T2 \|\| L1-T1
Controlled Fluid	fresh water -22-257 °F)
Repeat Accuracy	+/- 3 %
Scale Type	adjustable differential
Material	polypropylene Cover \|\| noryl thermoplastic resin or equivalent Cover
Factory Modification	low pressure cut-off (AUTO-START-OFF) operates roughly 10 PSIG below cut-in
Maximum Operating Rate	10 cyc/mn
Width	3.1 in
Motor Power Kw	1.5 kW 2 hp)230 V AC, 1 phase \|\| 1.1 kW 1.5 hp)115 V AC, 1 phase \|\| 1.5 kW 2 hp)115 V AC, 3 phase \|\| 2.2 kW 3 hp)230 V AC, 3 phase \|\| 0.75 kW 1 hp)460 V AC, 3 phase \|\| 0.75 kW 1 hp)575 V AC, 3 phase \|\| 0.18 kW 0.25 hp)115 V DC \|\| 0.18 kW 0.25 hp)230 V DC
Destruction Pressure	220 psi
Net Weight	1 lb(US)
Fluid Connection Type	0.25 inch NPSF internal UL 508

Electrical Connection	screw-clamp terminals 10 AWG \|\| screw-clamp terminals 5.261 mm²
Pressure Actuator	diaphragm
Height	3.71 in
Terminal Block Type	4 terminals
[Ui] Rated Insulation Voltage	575 V UL 508
Short-Circuit Protection	20 A cartridge fuse gG
Setting	internal
Mechanical Durability	300000 cycles
Pressure Switch Type Of Operation	regulation between 2 thresholds
Operating Position	any position
Contacts Type And Composition	2 NC, snap action, DPST-DB, Form YY
Depth	3.76 in
Adjustable Range On Rising Pressure	25-80 psi
Local Display	without
Electrical Durability	100000 cycles 10 cyc/mn

Environment

Product Certifications	UL listed file E12158 \|\| CSA file LR25490
Ambient Air Temperature For Storage	-33-257 °F
Nema Degree Of Protection	NEMA 1 UL 50
Ip Degree Of Protection	IP20 conforming to IEC 60529

Ambient Air Temperature For Operation	-33-257 °F
Standards	UL 508 \|\| NSF ANSI 61 Annex G \|\| CE
Protective Treatment	none

Contractual warranty

Warranty	18 months

Offer Sustainability

Circularity Profile	ENVEOLI111210EN
Mercury Free	Yes
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold

Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP111211EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
California Proposition 65	WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
