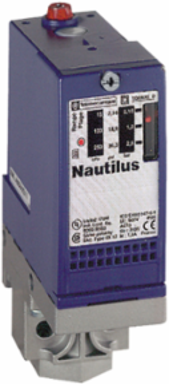

Telemecanique Sensors XMLA070D2S13 pressure switch XMLA 70 bar - fixed scale 1 threshold - 1 C/O

This product is part of the XML pressure sensors and switches range. This pressure switch controls or regulates pressure levels in hydraulic systems. It transforms the pressure change into a digital electrical signal when the preset operating points are reached. These pressure switches are used for pressure control or monitoring on water pumps, compressors, molding presses, injection molders, grinding machines, machining centers. This pressure switch is suitable for controlling hydraulic oil (0 °C to 160 °C). This pressure sensor has a fixed differential and is for detection of a single threshold. It incorporates a C/O contact. Pressure range is 72.5psi to 1015psi on increasing pressure and 29psi to 906.5psi on decreasing pressure. It has a 1/4in NPTF (female) connection for fluid connection. It has a piston actuator. It offers a long mechanical life with a mechanical durability of about 6 million operating cycles. The enclosure is made of zinc alloy. Limit switch is compliant with UL, CSA, EAC, CE, and EN/IEC standards and is IP66 rated. One of the most comprehensive catalogues of industrial and power pressure sensors on the market. The line of XM Pressure Sensors and Switches (formerly known as OsiSense) combine the latest pressure sensing technology with adaptability to virtually any configuration.
