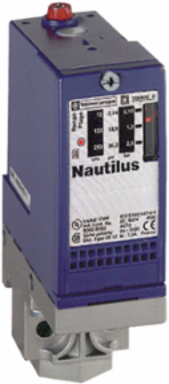

Telemecanique Sensors XMLA500D2S13 pressure switch XMLA 500 bar - fixed scale 1 threshold - 1 C/O
- MPN: XMLA500D2S13
- PPN: TES-XMLA500D2S13
CAD
$333.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
pressure switch XMLA 500 bar - fixed scale 1 threshold - 1 C/O
Documentation & Downloads
Specifications
Key Specifications
- Contacts Type And Composition
- 1 C/O
- Pressure Sensor Size
- 500 bar
- Electrical Connection
- screw-clamps terminals, 1 x 0.5...2 x 2.5 mm²
- Awg Gauge
- AWG 20...AWG 14
- [In] Rated Current
- 3 A, B300, AC-15 (Ue = 120 V)EN/IEC 60947-5-1 || 1.5 A, B300, AC-15 (Ue = 240 V)EN/IEC 60947-5-1 || 0.1 A, R300, DC-13 (Ue = 250 V)EN/IEC 60947-5-1
- Pressure Switch Type Of Operation
- detection of 1 single threshold
- Electrical Circuit Type
- control circuit
- Adjustable Range Of Switching Point On Rising Pressure
- 30-500 bar
- Adjustable Range Of Switching Point On Falling Pressure
- 10-455 bar
- Materials In Contact With Fluid
- steel || PTFE || FPM, FKM || stainless steel || brass
- Local Display
- with
- Fluid Connection Type
- 1/4" - 18 NPTF (female)
Pressure Sensor Typeelectromechanical pressure sensor
Pressure Actuatorpiston
Controlled Fluidhydraulic oil 0-160 °C)
Range Of ProductTelemecanique Pressure sensors XM
Scale Typefixed differential
Cable Entrycable gland 7-13 mm
Enclosure Materialzinc alloy
Product Or Component Typeelectromechanical pressure sensor
Maximum Permissible Accidental Pressure1125 bar
Destruction Pressure2250 bar
Device Short NameXMLA
Complementary
- Repeat Accuracy
- 2 %
- Maximum Operating Rate
- 60 cyc/mn
- [Ui] Rated Insulation Voltage
- 300 V UL 508 || 500 V EN/IEC 60947-1 || 300 V CSA C22.2 No 14
- Natural Differential At High Setting
- 45 bar +/- 10 bar)
- Contacts Material
- silver contacts
- Auxiliary Contacts Operation
- snap action
- Depth
- 75 mm
- Natural Differential At Low Setting
- 20 bar +/- 6 bar)
- Maximum Resistance Across Terminals
- 25 mOhm IEC 255-7 category 3 || 25 mOhm NF C 93-050 method A
Height113 mm
Terminal Block Type4 terminals
Short-Circuit Protection10 A cartridge fuse gG (gl)
Settingexternal
Mechanical Durability3000000 cycles
Width35 mm
Net Weight0.75 kg
[Uimp] Rated Impulse Withstand Voltage6 kV EN/IEC 60947-1
Maximum Permissible Pressure - Per Cycle625 bar
Environment
- Product Certifications
- CSA || UL || BV || CCC || EAC || LROS (Lloyds register of shipping)
- Ambient Air Temperature For Storage
- -40-70 °C
- Protective Treatment
- TC standard version
- Operating Position
- any position
- Shock Resistance
- 50 gn IEC 60068-2-27
Ambient Air Temperature For Operation-25-70 °C
StandardsCSA C22.2 No 14 || UL 508 || EN/IEC 60947-5-1 || CE
Electrical Shock Protection Classclass I IEC 1140 || class I IEC 536 || class I NF C 20-030
Vibration Resistance4 gn 30-500 Hz)IEC 60068-2-6
Ip Degree Of ProtectionIP66 EN/IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110914EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
