pressure switch XMLB 2.5 bar - adjustable scale 2 thresholds - 1 C/O

Documentation & Downloads

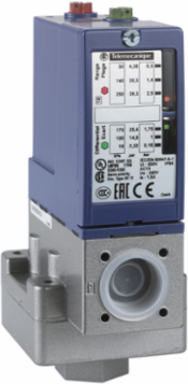

Telemecanique Sensors XMLB002B2S11 pressure switch XMLB 2.5 bar - adjustable scale 2 thresholds - 1 C/O

MPN: XMLB002B2S11
PPN: TES-XMLB002B2S11
UNSPSC: 39122210

CAD

$760.63

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

pressure switch XMLB 2.5 bar - adjustable scale 2 thresholds - 1 C/O

Documentation & Downloads

Specifications

Key Specifications

Contacts Type And Composition: 1 C/O

Pressure Actuator: diaphragm

Range Of Product: Telemecanique Pressure sensors XM

Pressure Switch Type Of Operation: regulation between 2 thresholds

Product Or Component Type: electromechanical pressure sensor

Materials In Contact With Fluid: FPM, FKM || steel

Fluid Connection Type: G 1/4 (female) ISO 228

Controlled Fluid: air 0-160 °C) || fresh water 0-160 °C) || hydraulic oil 0-160 °C)

Scale Type: adjustable differential

Enclosure Material: zinc alloy

Maximum Permissible Accidental Pressure: 9 bar

Destruction Pressure: 18 bar

Pressure Sensor Typeelectromechanical pressure sensor

Electrical Connectionscrew-clamps terminals, 1 x 0.5...2 x 2.5 mm² || 1 connector Pg 13

Line Rated Current3 A, B300, AC-15 (Ue = 120 V)EN/IEC 60947-5-1 || 1.5 A, B300, AC-15 (Ue = 240 V)EN/IEC 60947-5-1 || 0.1 A, R300, DC-13 (Ue = 250 V)EN/IEC 60947-5-1

Cable Entrycable gland 9-13 mm

Adjustable Range Of Switching Point On Falling Pressure0.14-2.29 bar

Local Displaywith

Pressure Sensor Size2.5 bar

Awg GaugeAWG 20...AWG 14

Electrical Circuit Typecontrol circuit

Adjustable Range Of Switching Point On Rising Pressure0.3-2.5 bar

Possible Differential Maximum At High Setting1.75 bar

Device Short NameXMLB

Complementary

Repeat Accuracy: 2 %

Terminal Block Type: 4 terminals

Contacts Material: silver contacts

Auxiliary Contacts Operation: snap action

[Uimp] Rated Impulse Withstand Voltage: 6 kV EN/IEC 60947-1

Maximum Operating Rate: 120 cyc/mn

Setting: external

Width: 55 mm

Maximum Resistance Across Terminals: 25 mOhm IEC 255-7 category 3 || 25 mOhm NF C 93-050 method A

Height113 mm

Short-Circuit Protection10 A cartridge fuse gG (gl)

Possible Differential Minimum At High Setting0.21 bar - 0.03 bar, + 0.05 bar)

Net Weight1.015 kg

Maximum Permissible Pressure - Per Cycle5 bar

[Ui] Rated Insulation Voltage300 V UL 508 || 500 V EN/IEC 60947-1 || 300 V CSA C22.2 No 14

Mechanical Durability8000000 cycles

Depth75 mm

Possible Differential Minimum At Low Setting0.16 bar - 0.03 bar, + 0.05 bar)

Environment

Product Certifications: CCC || BV || CSA || EAC || LROS (Lloyds register of shipping) || UL

Standards: EN/IEC 60947-5-1 || CSA C22.2 No 14 || UL 508 || CE

Shock Resistance: 50 gn IEC 60068-2-27

Ambient Air Temperature For Storage: -40-70 °C

Operating Position: any position

Ambient Air Temperature For Operation-25-70 °C

Vibration Resistance4 gn 30-500 Hz)IEC 60068-2-6

Ip Degree Of ProtectionIP66 conforming to EN/IEC 60529

Protective TreatmentTC standard version

Electrical Shock Protection Classclass I IEC 1140 || class I IEC 536 || class I NF C 20-030

Contractual warranty

Warranty: 18 months

Offer Sustainability

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP110914EN

Reach Regulation: Reference contains Substances of Very High Concern above the threshold

Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
