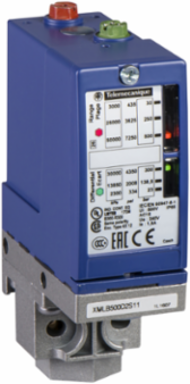

Telemecanique Sensors XMLB020C2S11 pressure switch XMLB 20 bar - adjustable scale 2 thresholds - 1 C/O

MPN: XMLB020C2S11
PPN: TES-XMLB020C2S11

$760.63

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

pressure switch XMLB 20 bar - adjustable scale 2 thresholds - 1 C/O

Documentation & Downloads

Specifications

Key Specifications

Contacts Type And Composition	1 C/O
Pressure Actuator	diaphragm
Range Of Product	Telemecanique Pressure sensors XM
Pressure Switch Type Of Operation	regulation between 2 thresholds
Product Or Component Type	electromechanical pressure sensor
Materials In Contact With Fluid	316L stainless steel \|\| PTFE
Fluid Connection Type	G 1/4 (female) ISO 228
Controlled Fluid	corrosive fluid 0-160 °C)
Scale Type	adjustable differential
Enclosure Material	zinc alloy
Maximum Permissible Accidental Pressure	45 bar
Destruction Pressure	90 bar

Pressure Sensor Type	electromechanical pressure sensor
Electrical Connection	screw-clamps terminals, 1 x 0.5...2 x 2.5 mm² \|\| 1 connector Pg 13
[In] Rated Current	3 A, B300, AC-15 (Ue = 120 V)EN/IEC 60947-5-1 \|\| 1.5 A, B300, AC-15 (Ue = 240 V)EN/IEC 60947-5-1 \|\| 0.1 A, R300, DC-13 (Ue = 250 V)EN/IEC 60947-5-1
Cable Entry	cable gland 9-13 mm
Adjustable Range Of Switching Point On Falling Pressure	0.3-18.4 bar
Local Display	with
Pressure Sensor Size	20 bar
Awg Gauge	AWG 20...AWG 14
Electrical Circuit Type	control circuit
Adjustable Range Of Switching Point On Rising Pressure	1.3-20 bar
Possible Differential Maximum At High Setting	11 bar
Device Short Name	XMLB

Complementary

Repeat Accuracy	2 %
Terminal Block Type	4 terminals
Contacts Material	silver contacts
Auxiliary Contacts Operation	snap action
[Uimp] Rated Impulse Withstand Voltage	6 kV EN/IEC 60947-1
Maximum Operating Rate	120 cyc/mn
Setting	external
Width	35 mm
Maximum Resistance Across Terminals	25 mOhm IEC 255-7 category 3 \|\| 25 mOhm NF C 93-050 method A

Height	113 mm
Short-Circuit Protection	10 A cartridge fuse gG (gl)
Possible Differential Minimum At High Setting	1.6 bar +/- 0.25 bar)
Net Weight	0.705 kg
Maximum Permissible Pressure - Per Cycle	25 bar
[Ui] Rated Insulation Voltage	300 V UL 508 \|\| 500 V EN/IEC 60947-1 \|\| 300 V CSA C22.2 No 14
Mechanical Durability	5000000 cycles
Depth	75 mm
Possible Differential Minimum At Low Setting	1 bar +/- 0.25 bar)

Environment

Product Certifications	CSA \|\| EAC \|\| UL \|\| LROS (Lloyds register of shipping) \|\| BV \|\| CCC
Standards	UL 508 \|\| CE \|\| EN/IEC 60947-5-1 \|\| CSA C22.2 No 14
Shock Resistance	50 gn IEC 60068-2-27
Ambient Air Temperature For Storage	-40-70 °C
Operating Position	any position

Ambient Air Temperature For Operation	-25-70 °C
Vibration Resistance	4 gn 30-500 Hz)IEC 60068-2-6
Ip Degree Of Protection	IP66 EN/IEC 60529
Protective Treatment	TC standard version
Electrical Shock Protection Class	class I IEC 1140 \|\| class I IEC 536 \|\| class I NF C 20-030

Contractual warranty

Warranty	18 months

Offer Sustainability

Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP110914EN
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
